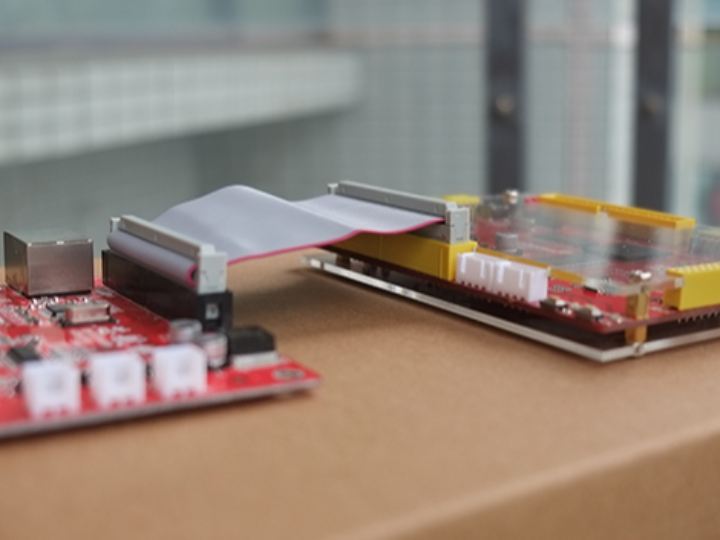

Dual Ethernet W5500 FPGA development board (mingqian)
Dual Ethernet W5500 FPGA development board (mingqian)
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
DETAILS Dual Ethernet W5500 RS232 / 485 CAN then FPGA development board DE2 Features: W5500: use NIOS II control W5500 to achieve Ethernet protocol, provide source code and 2.5 hours tutorial video CAN interface: Provides pure Verilog control data for CAN interface to send and receive data and use NIOS II control data transceiver sample source code. RTL8201: Ethernet UDP self-test routines 232,485: No sample source code required Schematic diagram Fine mechanical dimensions chart CAN Tutorial keynote Description: FPGAs have a unique advantage in handling various communications because of the…
