Digital Data Acquisition & Control System Weensy 3.6
Weensy 3.6 is the breakout board and I/O Expansion for Teensy 3.6
0
Components
Hardware components
WIZnet - W5500
x 1
Project description

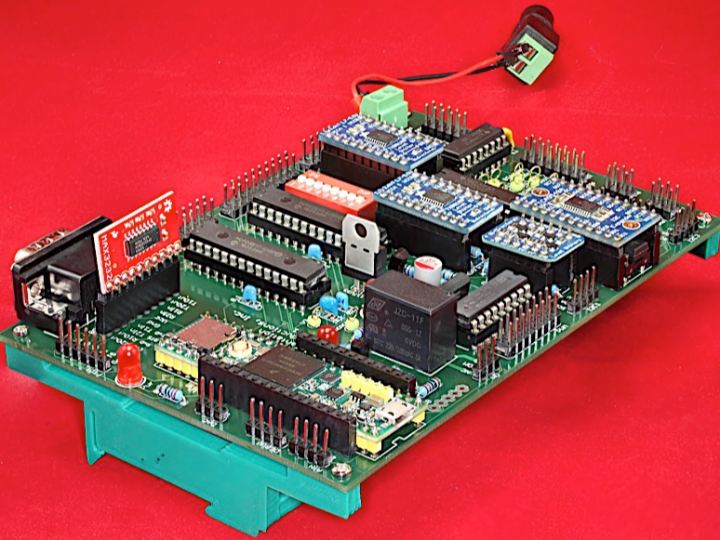

INTRODUCTION Overview The Weensy 3.6 board is a breakout board and I/O expansion for the Teensy 3.6 from PJRC. It provides the following FEATURES features: Open Hardware design based on Creative Commons 4.0 license Single 5V power supply input connector (screw terminals); provides 3.3V for Teensy 3.6 and other peripherals. LED indicates when power is applied. Adafruit-compatible Feather bus (compatible with software written for the feather adapter for the Teensy 3.2). Two MCP23S17 GPIO expansion chips provide 24 I/O lines (presented on two PPDIO96-compatible 20-pin headers) and eight DIP…
