WIZpix – Internet Connected Pixel Controller One Of Circuit Cellar’s IoT Winners
The challenge was to use Wiznet’s WIZ550io Ethernet controller modules to create an IoT project.
2
Components
Hardware components
WIZnet - W5500
x 1
Project description

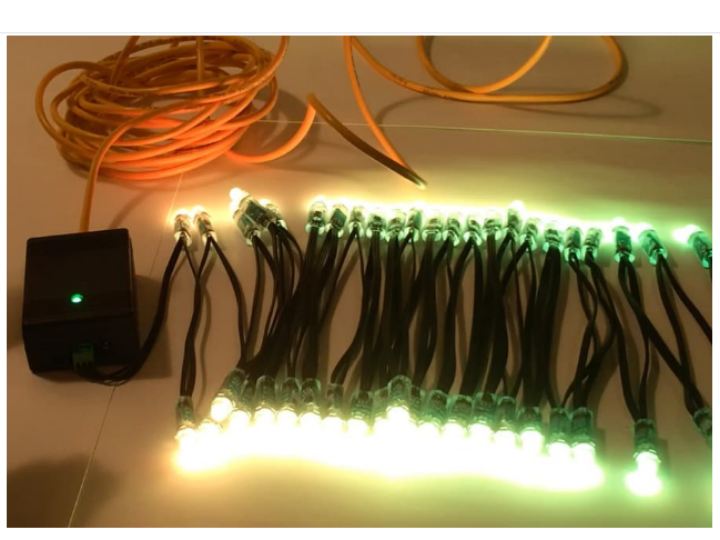

COMPONENTS Hardware Components W5500 X 1 DETAILS WIZpix – short for Wiznet Pixels , was Robg’s entry into Circuit Cellar’s IoT contest. The challenge was to use Wiznet’s WIZ550io Ethernet controller modules to create an IoT project. The WIZ5500io is an auto-configurable Ethernet controller module that includes the W5500 (TCP/IP-hard-wired chip and PHY embedded), a transformer, and an RJ-45 connector. Rob’s entry is an internet enabled RGB pixel controller with built in PoE( Power over Internet) . It’s intended uses include indoor Christmas trees and holiday decorations, stage lights and…
