Smart air-conditioner controller

WIZnet

Published February 13, 2023

Original author: huangOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

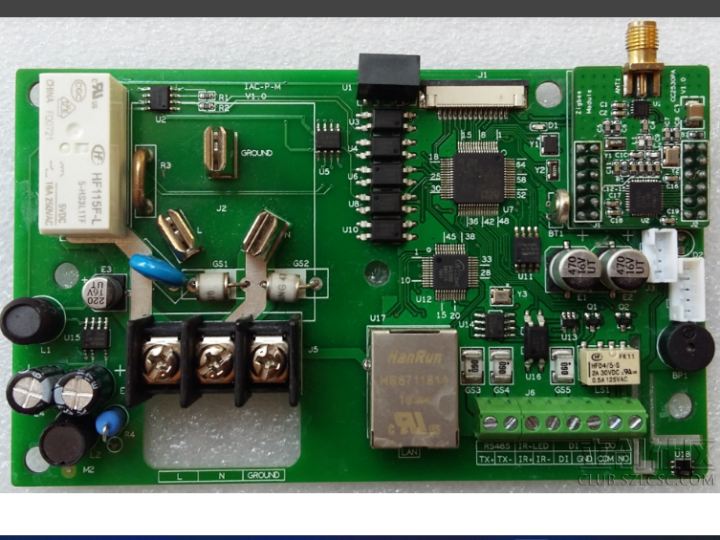

Winning works of the 2nd Lichuang Mall Electronic Production Festival Smart air-conditioner controller MCU:STM32 Ethernet:W5500 Wireless：WiFi / Zigbee Open source project Main component : POWER supply and control Energy metering circuit Ethernet communication WiFi communication Display and buttons Temperature Sensor
