Hardware prototyping with TinkerForge brick stacks
TinkerForge is a near production hardware prototyping platform. It allows you to quickly create durable hardware stacks that can control
2
Components
Hardware components
WIZnet - W5500
x 1
Project description

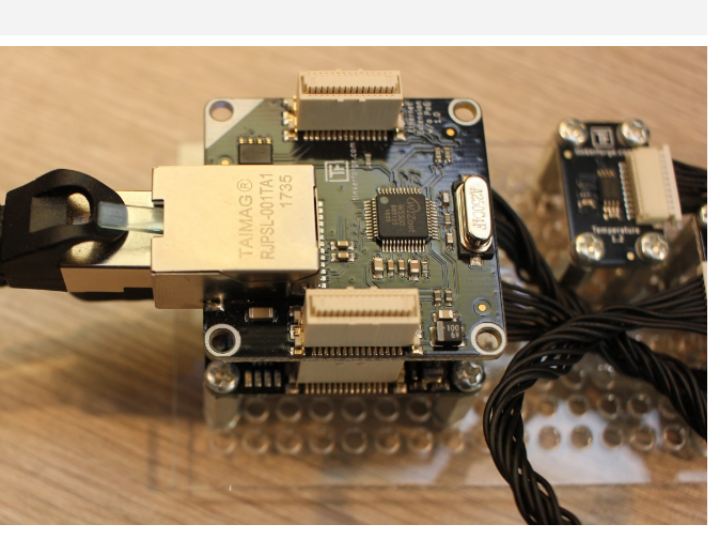

DETAILS TinkerForge systems are based around Bricks – stackable boards that provide connectors for Bricklets and optionally control servos and stepper motors. Each brick can be connected to another by a vertical stacking connector allowing you to add as many as needed. Fig 1: Master Brick with vertical stacking connectors and side bricklets connectors Fig 2: Two bricks stacked A Bricklet is a smaller single function PCB that provides ready to use (API, documentation, examples) component like Analog or Digital IO, but also various sensors, industrial power measurement, thermal cameras…
