4-Axis Stepper Motor Driver

4-Axis Stepper Motor Driver

WIZnet

Published February 08, 2023

694 UCC

229 VAR

Original author: Dinesh KumarOriginal source (new tab)

4-Axis Stepper Motor Driver

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

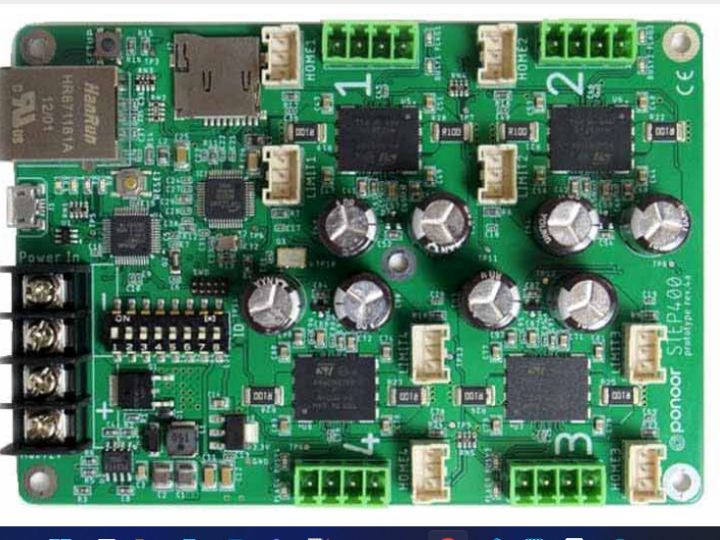

DETAILS STEP400 is a 4-axis stepper motor driver designed around the Microchip SAM D21 Motor Driver IC. This new motor driver board provides a simple and creative coding environment to generate motion. The package comes with an Arduino Zero, Ethernet shield, sensor inputs for homing and limiting, and four stepper motor drivers placed together on one PCB board. Features & Specifications MCU: Microchip ATSAMD21G18A Ethernet controller: Wiznet W5500 Stepper driver: STMicroelectronics PowerSTEP01 DC-DC converter: ROHM BD9G341AEFJ Axes: 4 Applicable motor: Bi-polar stepper motor Input voltage…
