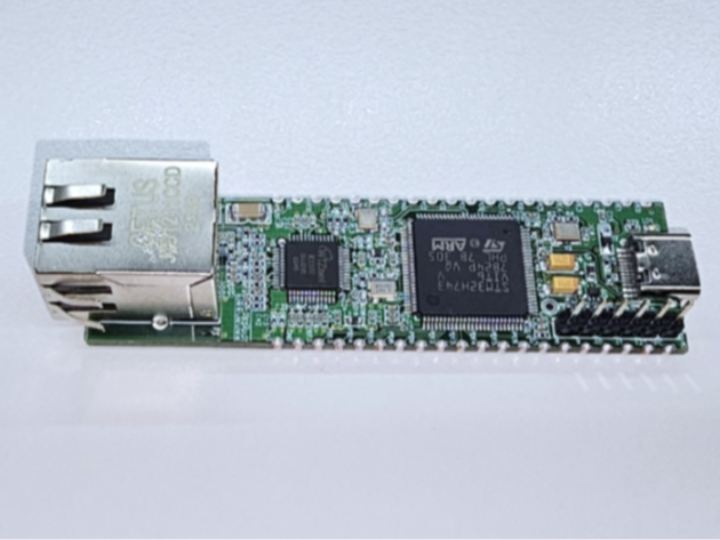

Ethernet Module by Connecting a W5500 to an STM32H743VIT6

Ethernet Module by Connecting a W5500 to an STM32H743VIT6

Hannah

Published April 16, 2024

Original author: Hannah Lee · South Korea

Ethernet Module by Connecting a W5500 to an STM32H743VIT6

Components

Hardware components

WIZnet parts

Project description

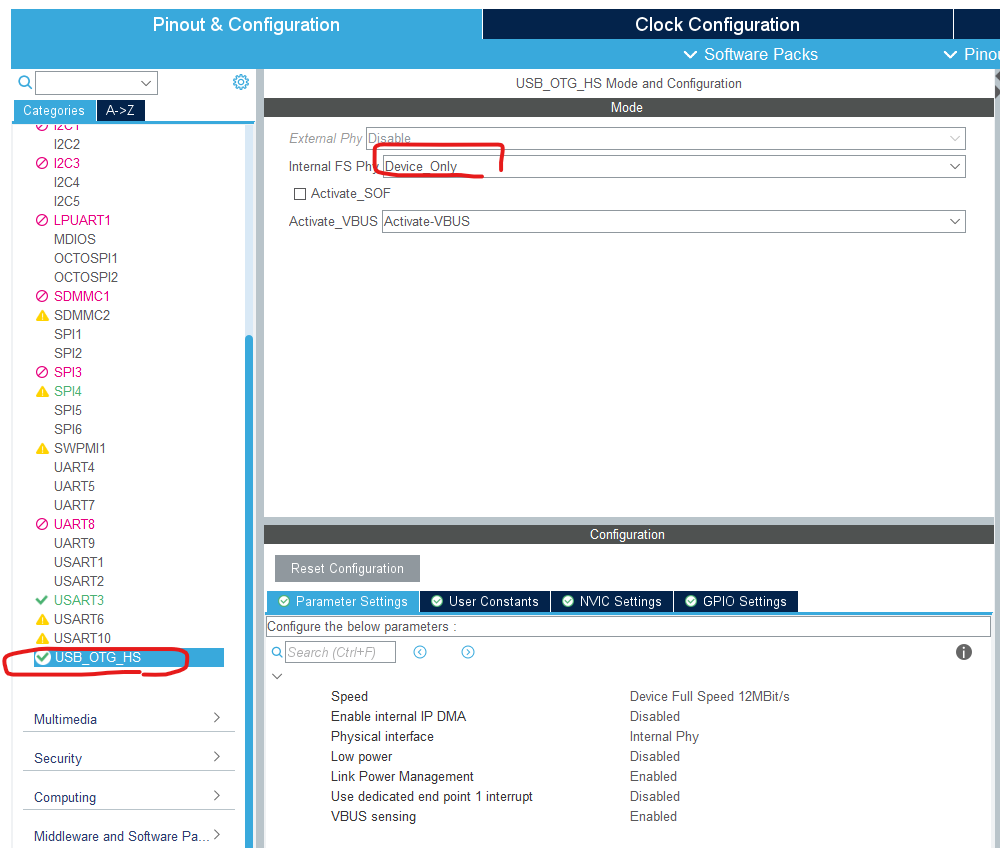

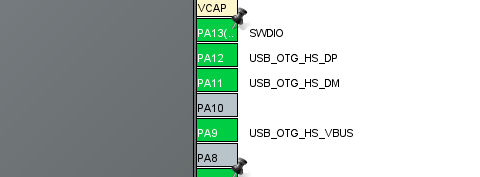

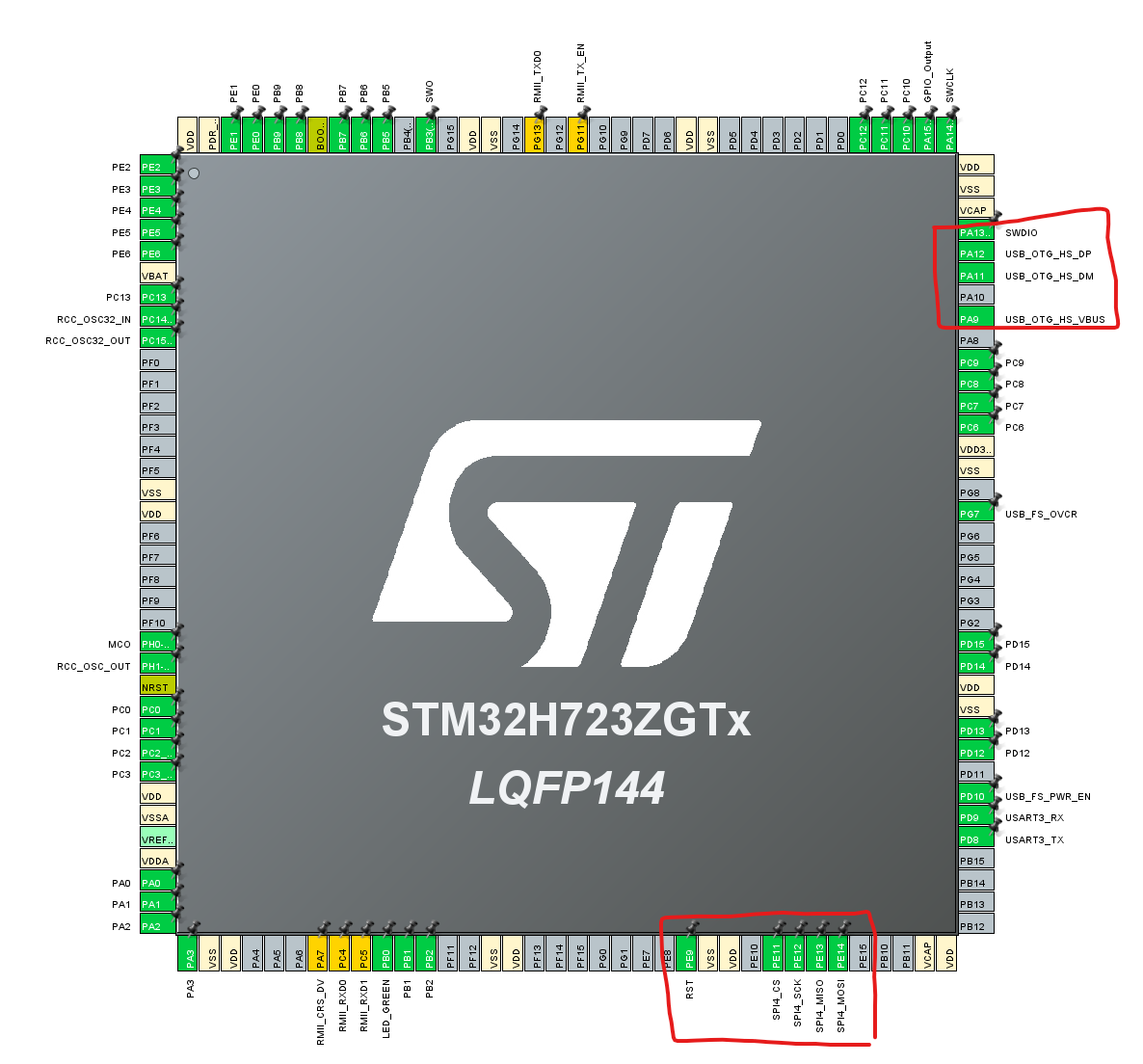

Pinout & Configuration key features Wiznet W5500 Integrated TCP/IP Protocol Stack: The W5500 is equipped with a hardwired TCP/IP protocol stack, which supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols, streamlining the implementation of network communication. SPI Interface: It features an SPI (Serial Peripheral Interface) that allows for fast communication with a host processor, like an STM microcontroller. Socket Flexibility: Provides up to 8 independent sockets that can be used simultaneously, enabling efficient network management and multi-connection capability. Internal…
