Raspberry Pi 5 + PoE+ HAT

I made Raspberry Pi 4 + PoE HAT and Raspberry Pi 5 + PoE HAT.

Alan

Published December 21, 2023

Raspberry Pi 5 + PoE+ HAT

Components

Hardware components

WIZnet parts

Project description

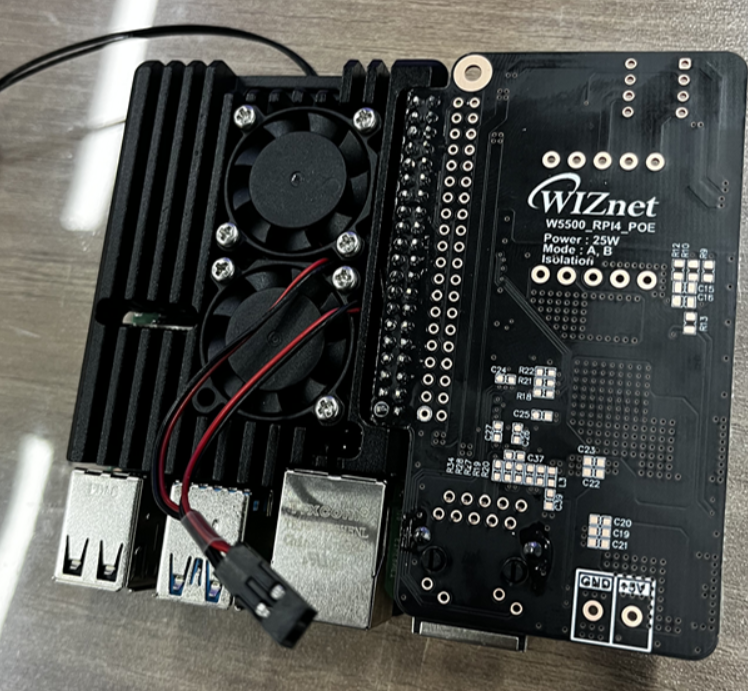

Overview It is not long before Raspberry PI 5 is commercialized. So, let's do a project to connect Raspberry PI 5 and WIZnet. Following the development of 8W-class PoE, this time, we will make 30W-class PoE products that meet IEEE 802.3at. However, since Raspberry Pi 5 has not been released yet, we will proceed with Raspberry Pi 4. It looks like this. And Raspberry PI 4 has an issue that generates a lot of heat. (Of course, if you use a lot of current) So most of them use coolers in their cases to use them properly. Our company also reviewed Raspberry PI 4, which was equipped with a case…
