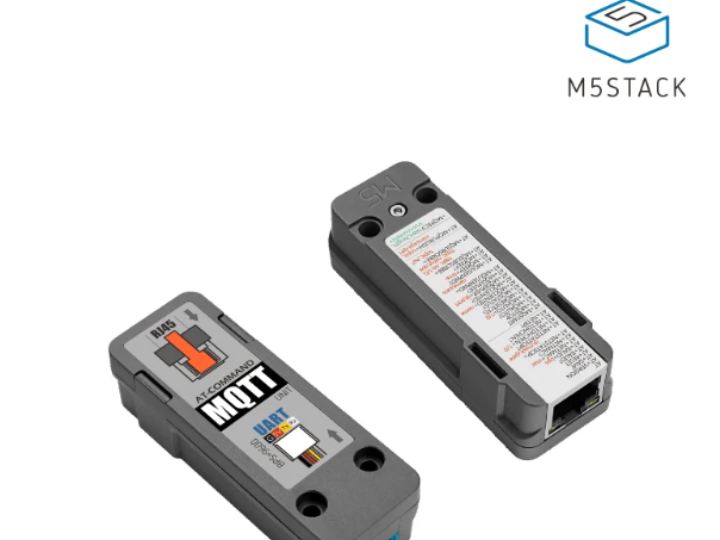

MQTT Unit with RJ45 Port (W5500)
UNIT MQTT is an Ethernet MQTT communication module with embedded W5500 Ethernet chip, UART communication interface (AT command control) and
3
Components
Hardware components
WIZnet - W5500
x 1
Project description
- PRODUCT DETAILS
Description
UNIT MQTT is an Ethernet MQTT communication module with embedded W5500 Ethernet chip, UART communication interface (AT command control) and integrated RJ45 adaptive 10/100M network port. It also supports 4 Topics subscription with extremely low network latency, and is widely used in various industrial automation, security monitoring systems, automatic measurement and control systems, and equipment data on the cloud.
Product Features
- Embedded W5500 Ethernet chip
- RJ45 Ethernet port 10/100Mbps
- Ethernet MQTT communication
- Support 4x Topic subscription
- Low latency
- Development method:
- AT command, UART: 9600bps default
- Development platform: UIFlow, Arduino
Include
- 1x UNIT MQTT
- 1x HY2.0-4P Cable(20cm)
Applications
- Remote data collection/up to the cloud
Specification
| Specifications | Parameters |
|---|---|
| Module Processor | ARM Cortex-M3 |
| Communication interface | UART: baud 9600bps 8N1 default |
| MQTT | Support 4x Topic subscription, not support MQTTS |
| Network port | RJ45 adaptive 10/100M network port |
| Delay | Delay `10ms |
| Standby working current | 40.4mA |
| Net weight | 22.4g |
| Gross weight | 27.2g |
| Product size | 72 * 26 * 19 mm |
| Packing size | 73 * 35 * 20 mm |
