Network Shield WIZnet W5500
ATXMEGA8E5 with W5500
2
Components
Hardware components
WIZnet - W5500
x 1
Project description

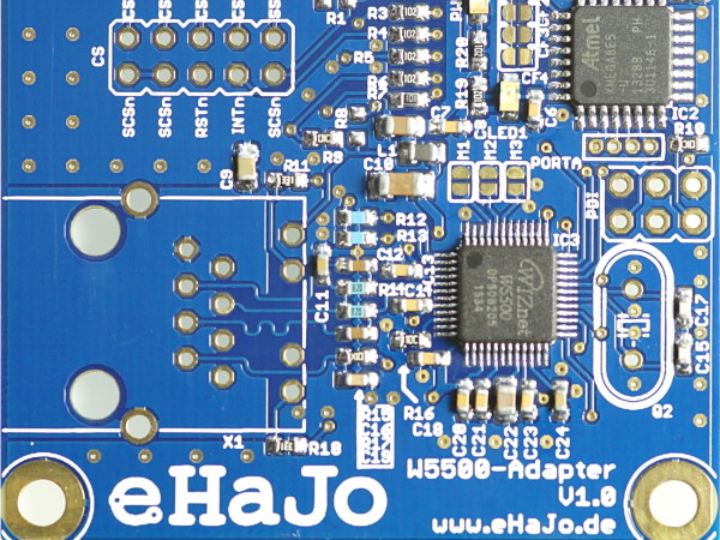

Original : https://www.ehajo.de/dokuwiki/bausaetze:netzwerk-adapter:anleitung http://dangerousprototypes.com/blog/2013/12/30/w5500-adapter-v1/ https://shop.wiznet.eu/w5500-adapter.html Author : eHaJo Published On : 2014-08.04 This is the W5500 network adapter. It includes ATXMEGA8E5 and provides a UART, SPI interface for external MCU. The ATXMEGA8E5 features an 8-bit AVR processor core running at up to 32 MHz, with 8 KB of flash memory, 512 bytes of EEPROM, and 1KB of SRAM. It also includes a wide range of on-chip peripherals, including multiple USART, SPI, and TWI interfaces, as well as a…
