Ethernet IO

ESP32 based Ethernet I/O module with MQTT support

WIZnet

Published January 30, 2023 · © Apache License 2.0 (Apache-2.0)

Original author: András Makai · HungaryOriginal source (new tab)

Project description

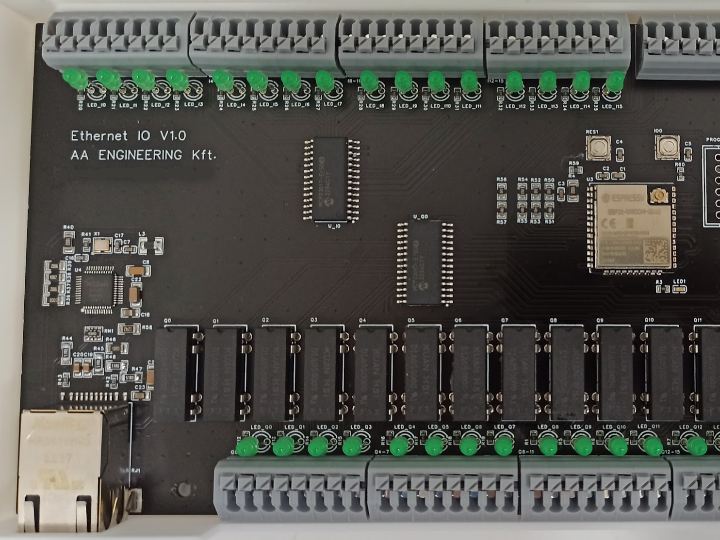

This project is in prototyping phase, first working prototype is ready and alive in a 3D printed housing. Software basic functions are ready: it can obtain IP through DHCP, or use static IP if DHCP is not available, config webpage is available to set IP settings and MQTT details, connection to MQTT server is ready, can check for OTA update availability and update the firmware, can be rebooted from config webpage. Project will be open-source once it reaches the initial release phase. Features: 16 TTL level inputs, 4 analog inputs, 16 relay outputs (max. 24V, 0.5A) Ethernet connection (W5500)…
