What Role Does the W5500 Play in the OpenIndus OI-Core Modular Industrial PLC?
OI-Core, the ESP32-S3 master module of the OpenIndus rail-mounted PLC from Toulouse, gets its 10/100 Ethernet port from an embedded WIZnet W5500 on SPI.
0
Components
Hardware components
WIZnet - W5500

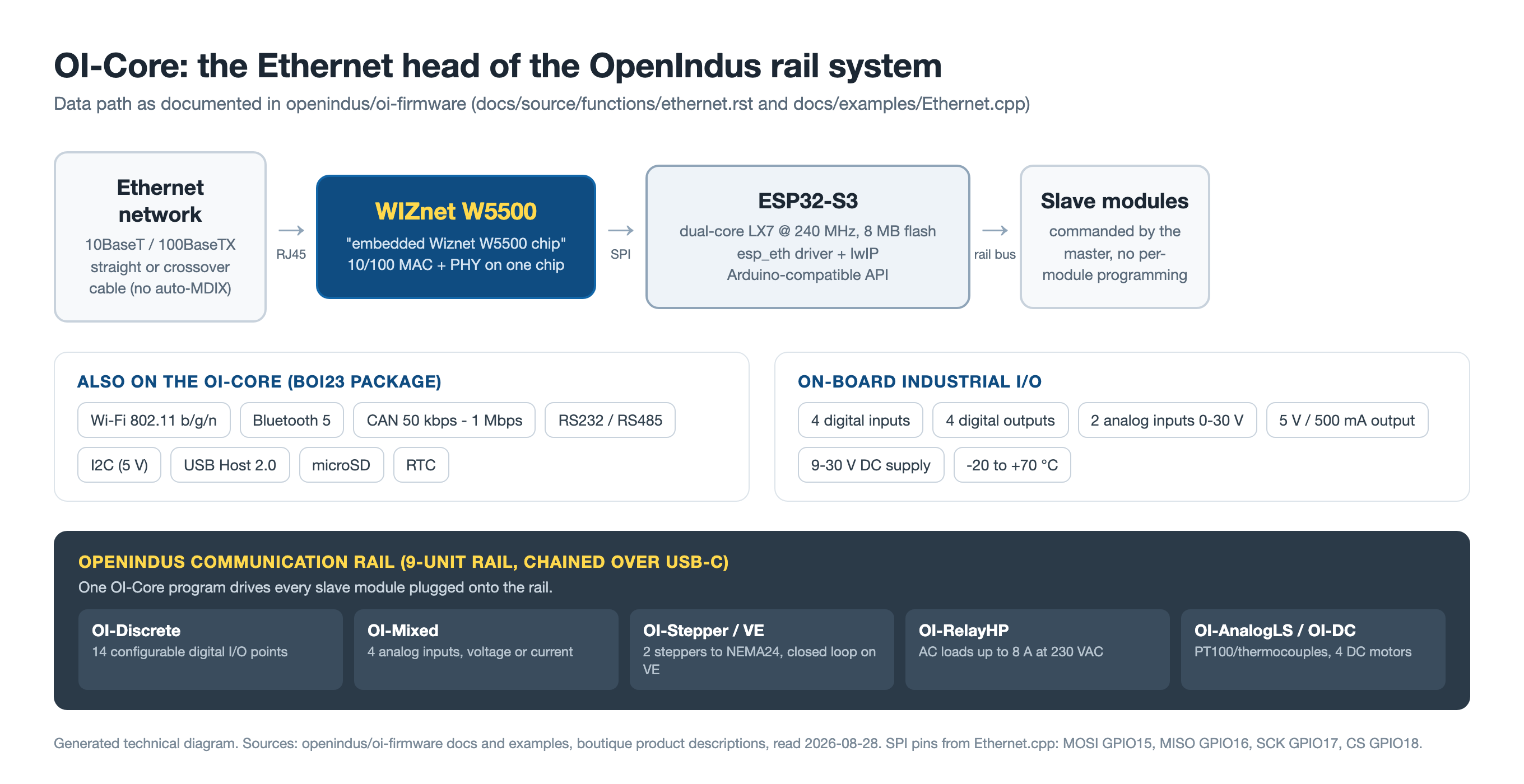

Embedded SPI Ethernet controller providing the OI-Core's 10BaseT/100BaseTX port (SCK GPIO17, MISO GPIO16, MOSI GPIO15, CS GPIO18)
Project description

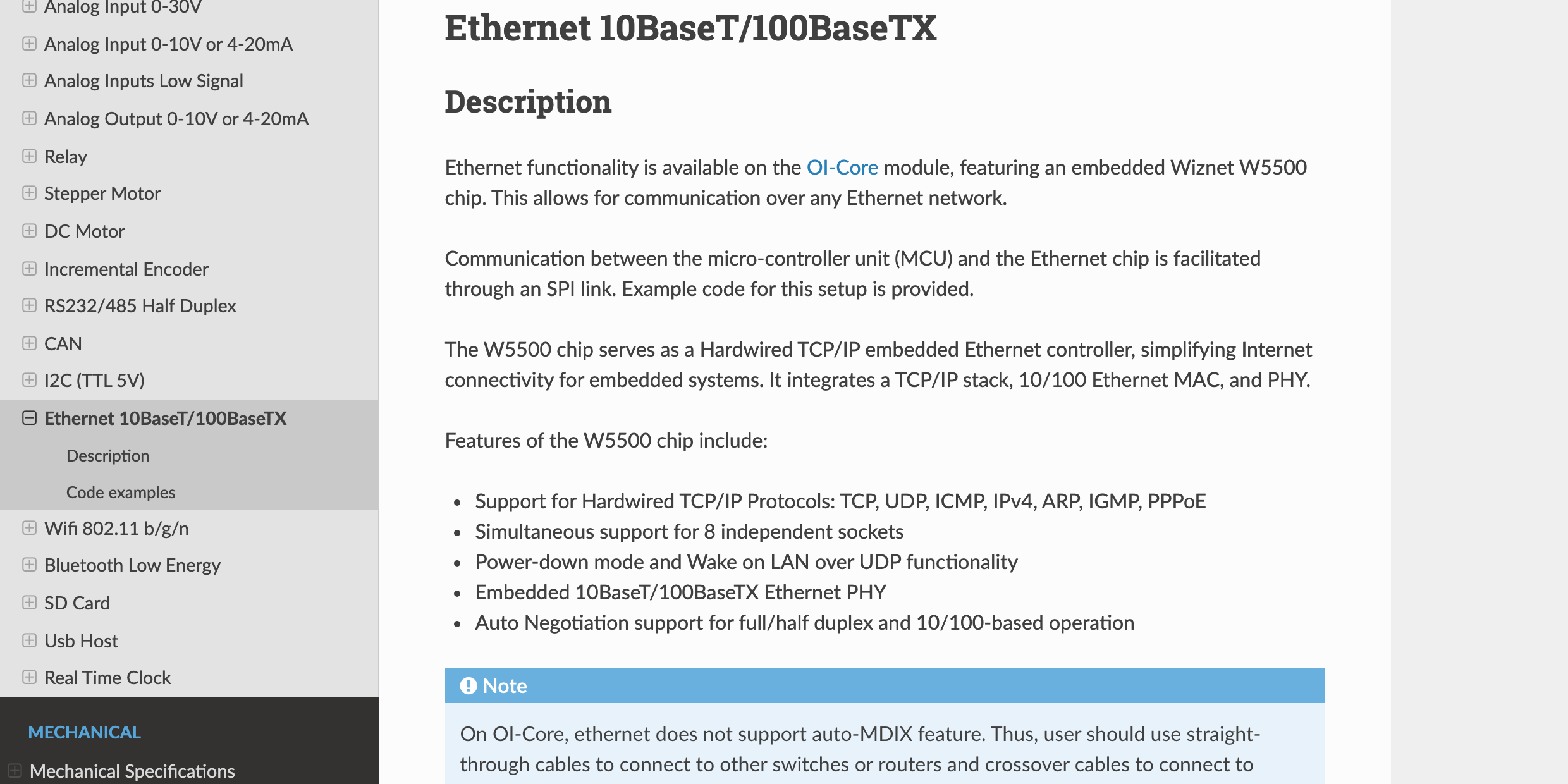

📌 A W5500 Gives the OpenIndus OI-Core Its Wired Ethernet Port OpenIndus is an engineering company founded in February 2017 in Toulouse, France, that designs and sells a modular industrial controller family under the tagline "Robotique, électronique et automatismes industriels" (robotics, electronics and industrial automation). The OI-Core is the head of that family, and the vendor's own firmware documentation states where its network port comes from: "Ethernet functionality is available on the OI-Core module, featuring an embedded Wiznet W5500 chip." The OI-Core is a rail-mounted control…
