Remora - ethernet NVEM cnc board / Remora-NVEM

With Remora firmware now running on STM32 F4 and F1 series MCU's and ethernet communications working in a proof of concept using a w5500

WIZnet

Published October 25, 2022

Original author: ScottaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

With Remora firmware now running on STM32 F4 and F1 series MCU's and ethernet communications working in a proof of concept using a w5500 interface. The next logical step is to develop native ethernet functionality.

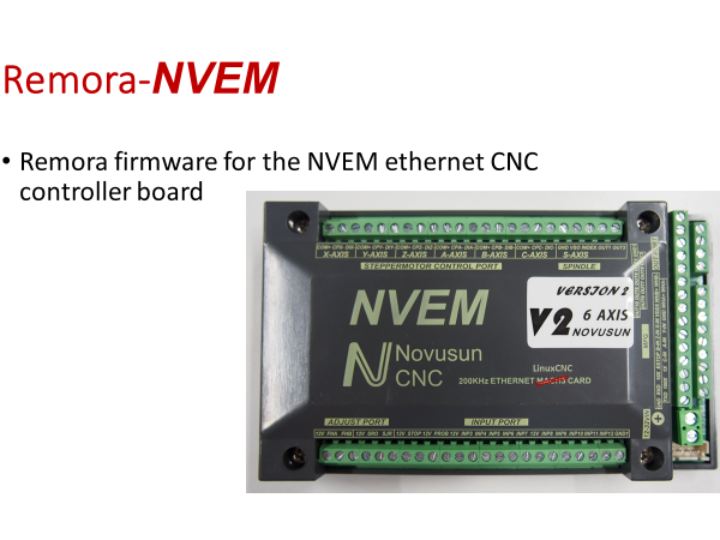

There aren't many ethernet enable STM32 3D printer controller boards around but I came across the NVEM ethernet board for Mach3. It has an STM32F207 on board so expanding Remora to this board seems feasible.

Reference Links:
