How to Build Factory Sensors with PP-W5500-POE on an MCU Platform?

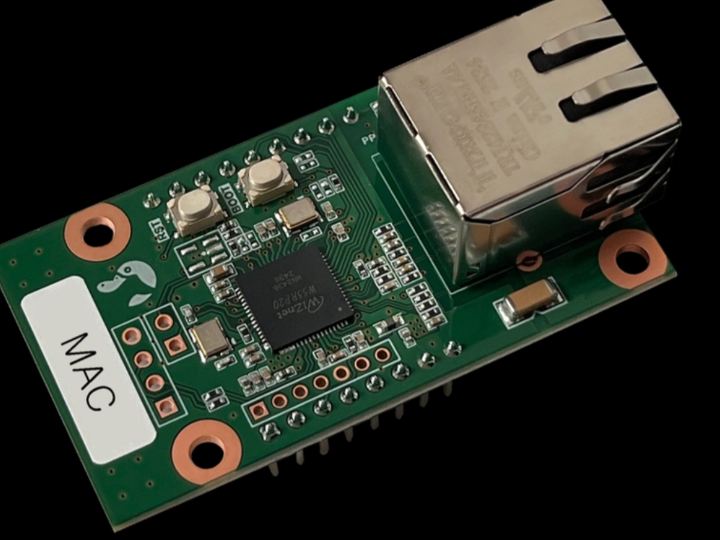

PP-W5500-POE is a WIZnet W5500-based Ethernet and Power-over-Ethernet module for factory sensor nodes that need both wired data and local power from one LAN cab
0
Project description
How to Build Factory Sensors with PP-W5500-POE on an MCU Platform? Summary PP-W5500-POE is a WIZnet W5500-based Ethernet and Power-over-Ethernet module for factory sensor nodes that need both wired data and local power from one LAN cable. The W5500 provides the hardware TCP/IP Ethernet interface, SPI-based socket control, 10/100 Mbps PHY, and internal packet buffering, while the PoE section accepts IEEE 802.3af power and generates regulated 5 V and 3.3 V rails for the embedded device. What the Project Does This product is not a complete sensor node by itself. It is a network-and-power module…
