How to Add PoE Ethernet with WIZnet W5500 on PP-W5500-POE?

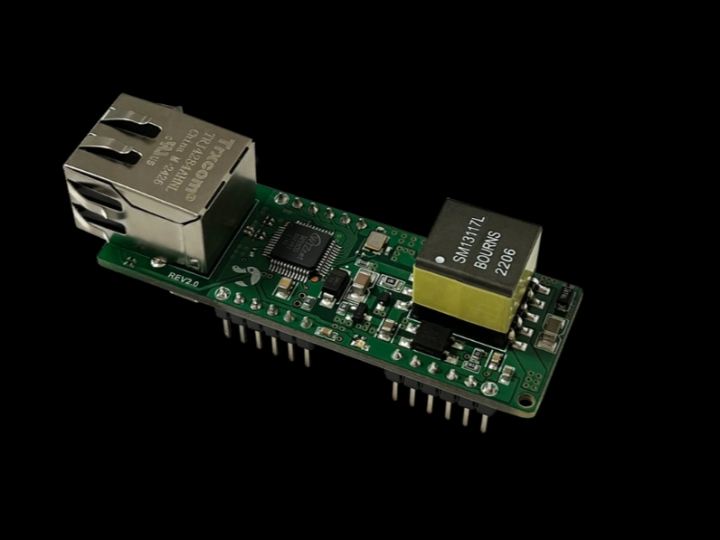

PP-W5500-POE is a compact Ethernet-and-power module for Industrial IoT and commercial embedded devices that need wired networking and power delivery through one
0
Project description
How to Add PoE Ethernet with WIZnet W5500 on PP-W5500-POE? Summary PP-W5500-POE is a compact Ethernet-and-power module for Industrial IoT and commercial embedded devices that need wired networking and power delivery through one LAN cable. The board uses WIZnet W5500 as the Ethernet controller and hardware TCP/IP engine, while the PoE section supplies up to 8 W with 5 V and 3.3 V outputs for the host system or nearby circuitry. What the Project Does PP-W5500-POE combines a WIZnet W5500 Ethernet interface with a PoE power front end. The product page describes it as a board that provides…
