How Does KinCony CO16 Connect Analog Sensors to Home Assistant with W5500?
CO16 links 16 analog inputs, four multiplexed PT100 probes and relay control to Home Assistant through W5500 Ethernet and configurable firmware.
0
Components
Hardware components
WIZnet - W5500
Onboard W5500 Ethernet controller linked to ESP32-S3 over SPI; standard CO16 hardware.
Project description

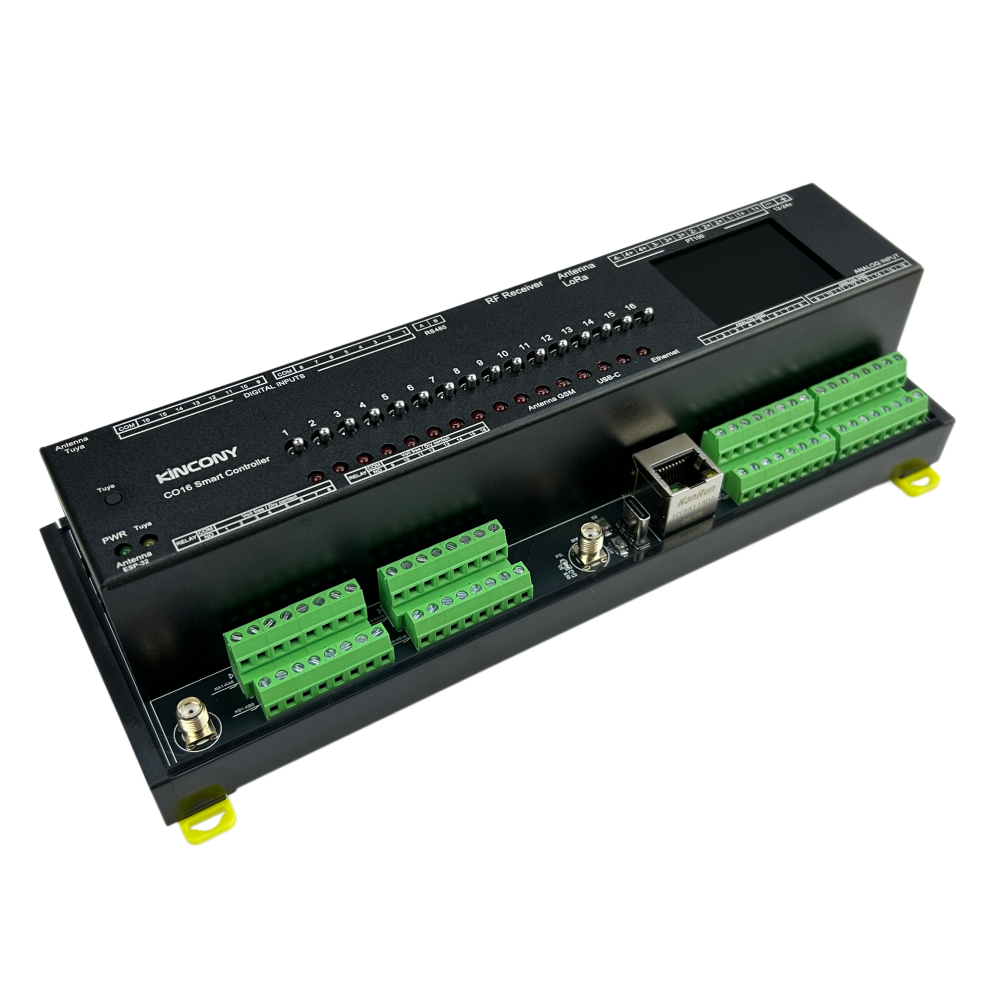

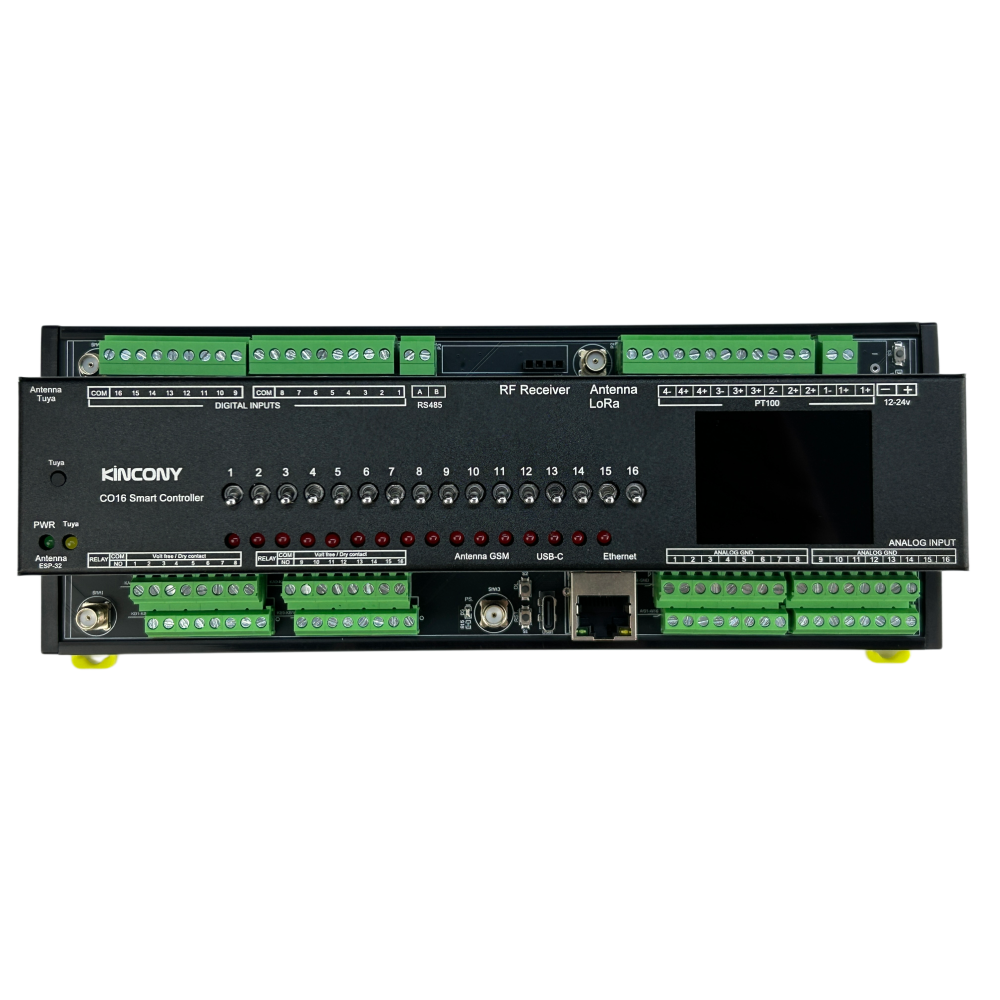

Many Sensors, One Wired Controller KinCony CO16 connects analog sensors, temperature probes, contact inputs and relay outputs to Home Assistant through onboard WIZnet W5500 Ethernet. The DIN-rail controller combines an ESP32-S3 with 16 analog inputs, 16 isolated dry-contact inputs, 16 relay outputs and connections for four PT100 temperature probes. Its purpose is to bring several kinds of wired field signal into one automation system. KinCony, based in Hangzhou, China, announced CO16 in September 2026. The commercial product is supplied in a metal enclosure with labeled terminals and a…
