Arduino W5500 Rotary Light Control for Home Assistant

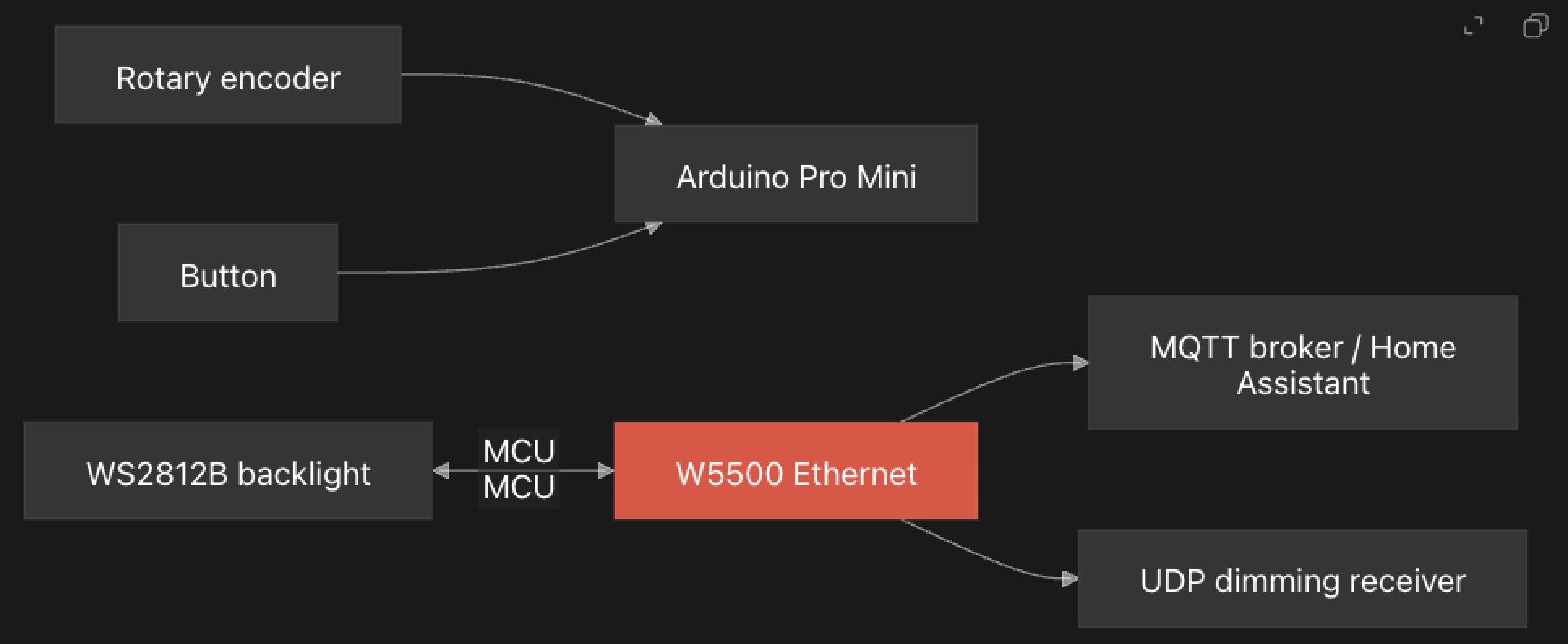

Arduino Pro Mini uses W5500 Ethernet for MQTT light state and UDP dimming control.

Benjamin

Published May 18, 2026 · © GNU General Public License, version 3 or later (GPL3+)

Original author: Maxim ZhuravlevOriginal source (new tab)

Arduino W5500 Rotary Light Control for Home Assistant

Components

Hardware components
Software Apps and online services

WIZnet parts

Project description

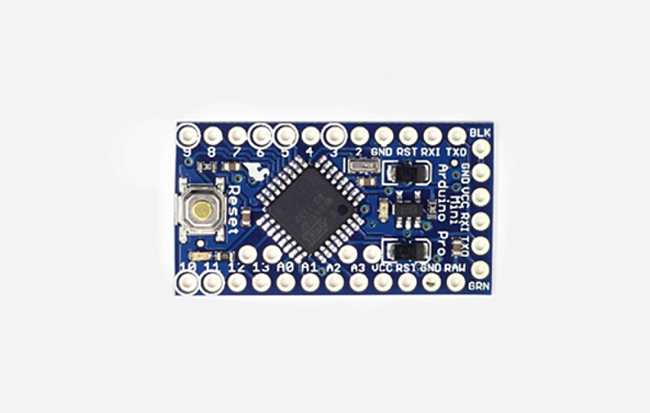

Arduino Pro Mini and W5500 on a Static LAN The build configuration is a compact PlatformIO project. platformio.ini targets pro8MHzatmega328 with the Arduino framework and declares dependencies for Ethernet, MQTT, JSON parsing, button handling, and RGB LED output. That target choice matters because the ATmega328 is memory-constrained. The latest commit message explicitly says the author removed dynamic JSON generation and replaced it with macros to save memory. The firmware uses a static IPv4 layout on 192.168.55.0/24. The device ID is compiled into the firmware with #define ID 239, then…
