Network Module WIZnet W5500 with ioShield-A

ioShield-A based on the WIZ550io network module

wiz_chandana

Published February 04, 2023

Original author: rhydoLABZ · IndiaOriginal source (new tab)

Network Module WIZnet W5500 with ioShield-A

Project description

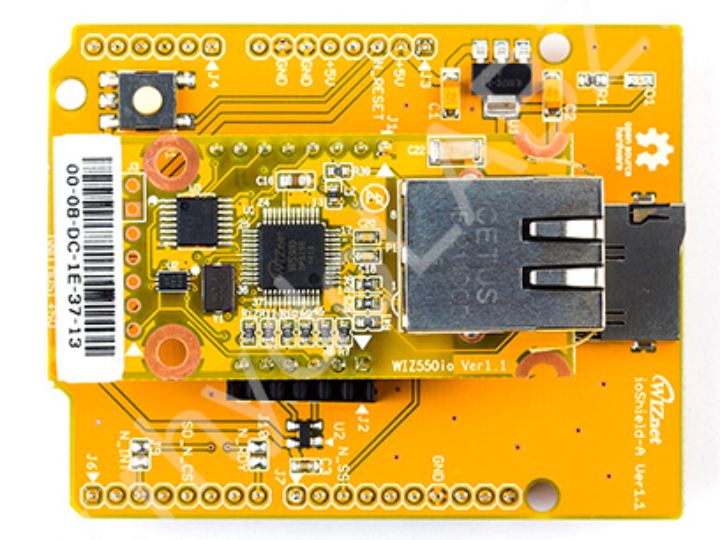

ioShield-A allows an Arduino board to connect to the Internet. It is based on the WIZ550io network module which uses WIZnet W5500 ethernet chip (W5500 Datasheet). The WIZnet W5500 provides a network (TCP/IP) stack capable of both TCP and UDP. It supports up to eight simultaneous socket connections. And, when Powered on and nRESET triggered, WIZ550io initializes itself with embedded real MAC and default IP address and can be pinged from user’s computer.



Network Module WIZnet W5500 with ioShield-A

As ioShield uses W5500 chipset, instead of W5100 which was used before in the Arduino Ethernet Shield, users needs to use WIZnet Ethernet Library.

Network Module WIZnet W5500 with ioShield-A





Features:
Supports following Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Support Auto Negotiation (Full and half duplex, 10 and 100-based)
Package includes:

1 x WIZnet ioShield-A
1 x WIZ550io network module
