Iarduino Ethernet Shield W5500

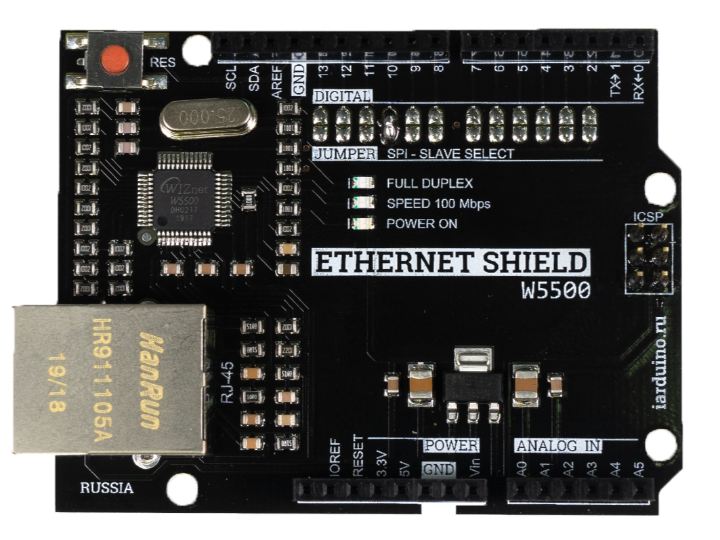

Iarduino Ethernet Shield W5500 is an expansion board that allows you to remotely connect Arduino boards to an Ethernet network
1
Project description
General information Ethernet Shield W5500 is an expansion board that allows you to remotely connect Arduino boards to an Ethernet network, and therefore to the Internet (if connected). Characteristics : Supply voltage: 5V; Interface: SPI; Network protocols: TCP, UDP; Network interfaces: 10Mbps / 100Mbps; Internal buffer size: 32 kB; Operating modes: duplex / half duplex; LED indication; Connection The board is installed on top of the Arduino, which communicates via the SPI bus. The pins used to connect to the bus are: 10, 11, 12, 13. The SS pin assigned to pin 10 can be reassigned by simply…
