Seeeduino W5100 Ethernet communication development board

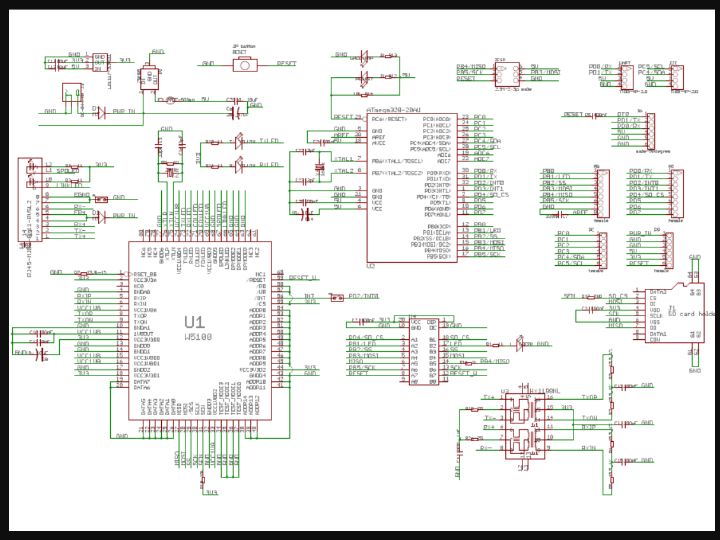

This design shares design materials such as the schematic diagram/PCB source file of the Seeeduino W5100 Ethernet communication development.
0
Project description
The Seeeduino-w5100 Ethernet is a compact and versatile development platform that combines Ethernet communication data logging and processing with device control. The Seeeduino Ethernet communication development board is designed based on MEGA328P chip and W5100, the former provides Arduino control mode, and the latter provides TCP and UDP Ethernet communication capabilities. Coupled with the integrated SD card module, convenient and practical remote data logging, processing or transmission over the network. The hardware composition of the Seeeduino-w5100 Ethernet communication development…
