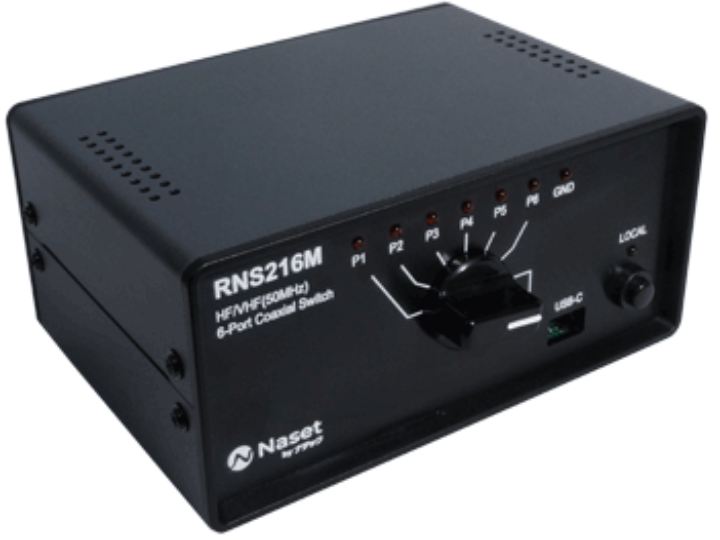

GND接続機能付リモート同軸切替器 RNS216M (Naset RNS216M: A W5100S-EVB-Pico2-Based 6-Port Remote Coaxial Switch)
Naset RNS216M is a six-port HF/50 MHz coaxial switch using W5100S-EVB-Pico2 for browser-based LAN control, local switching, and automatic grounding.
0
Project description
Overview Amateur-radio stations often use different antennas for different frequency bands. When several antennas share one transceiver, a coaxial switch is needed to select the active feed line. NATEC’s RNS216M extends this traditional switching function to Ethernet. Up to six HF and 50 MHz antennas can be connected and selected either with the local rotary switch or remotely from a web browser on the LAN. No dedicated client application is required. Another important feature is its GND connection function. Unselected antenna ports are connected to ground, and all ports automatically return…
