What Does W5100 Ethernet Add to the Visual Rotor VRANDRO Retrofit Kit?

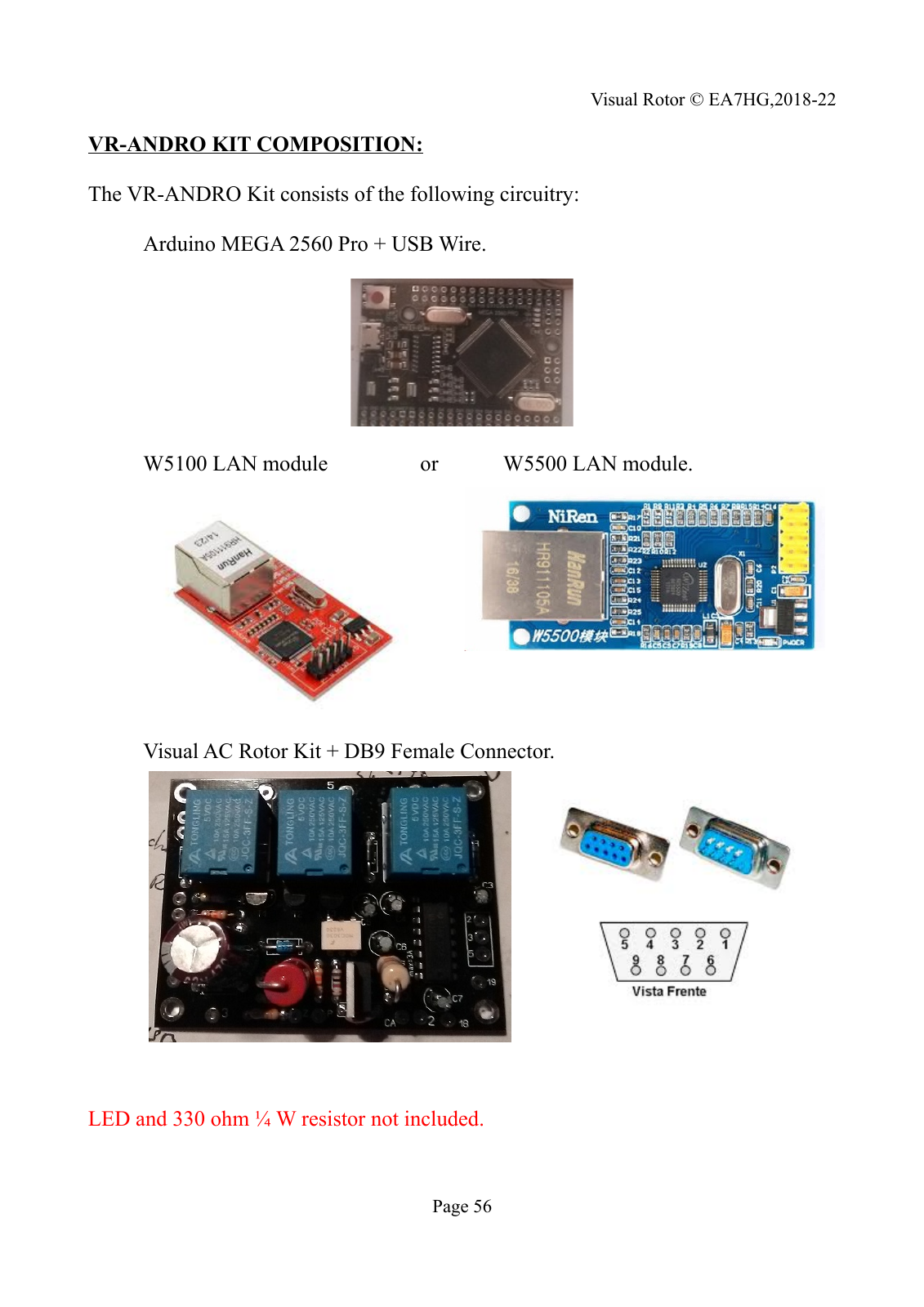

EA7HG VRANDRO adds Android control to an antenna rotator with a Mega Pro, W5100 Ethernet and relay board. The manual also supports W5500.

Benjamin

Published October 12, 2026

Original author: Eugenio F. Medina Morales (EA7HG) · SpainOriginal source (new tab)

What Does W5100 Ethernet Add to the Visual Rotor VRANDRO Retrofit Kit?

Components

Hardware components

Project description

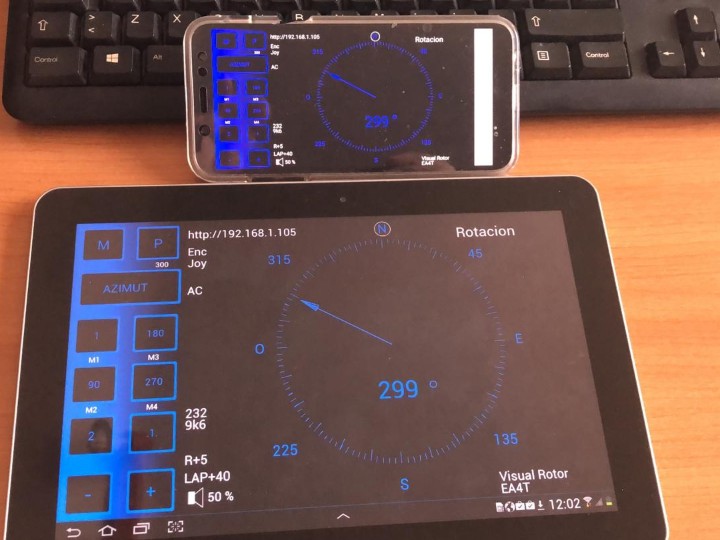

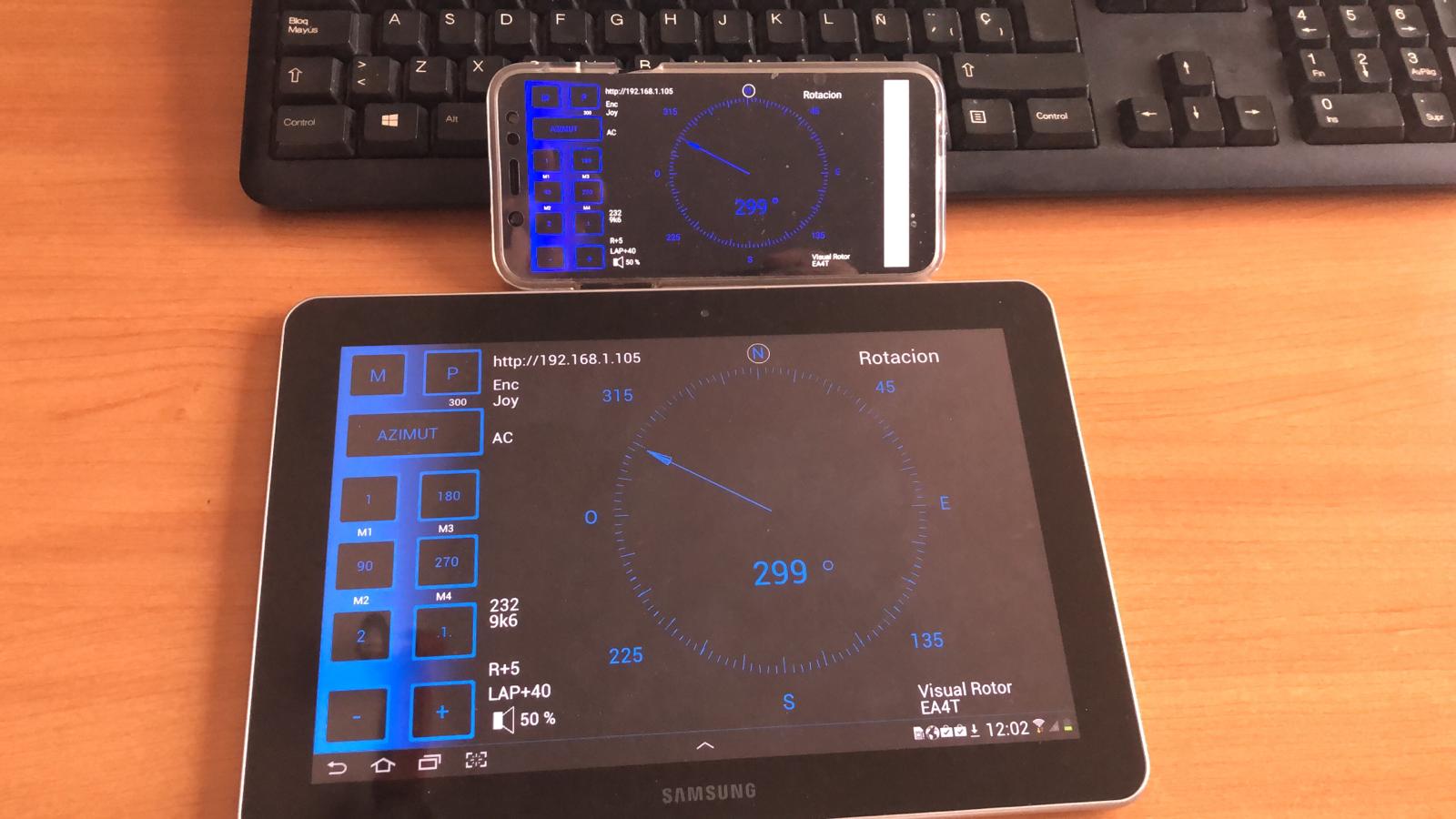

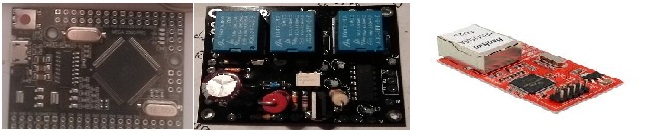

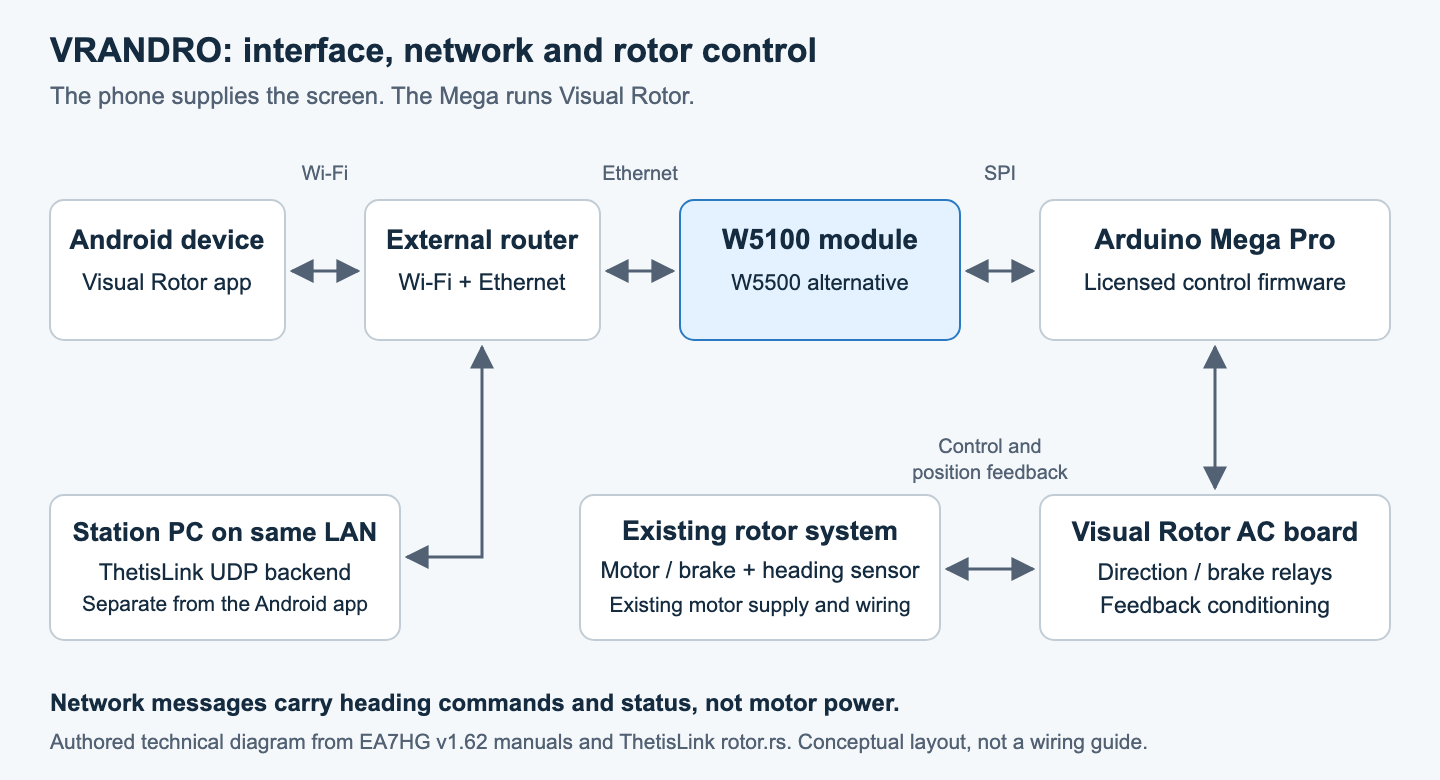

An Android screen for an existing antenna rotator VRANDRO adds Android and Ethernet control to an existing antenna rotator. Radio amateur Eugenio F. Medina Morales, EA7HG, supplies the kit from Jaén, Spain. The current manufacturer listing combines an Arduino Mega Pro running licensed Visual Rotor firmware, a WIZnet W5100 LAN module and an AC rotor-control board. A rotator turns a directional antenna toward a chosen bearing. VRANDRO brings the operator interface onto a phone or tablet while retaining the antenna mechanism and integrating with its controller. That makes the product…
