Which W5100 Remote I/O Board Lets a PC Control H8 Peripherals Through an API?

Technowave LANM3069D-S uses W5100 Ethernet and an H8 controller to expose digital, analog and timer I/O through Windows libraries.

Benjamin

Published September 07, 2026

Original author: Technowave Ltd. Β· JapanOriginal source (new tab)

Which W5100 Remote I/O Board Lets a PC Control H8 Peripherals Through an API?

Components

Hardware components

Project description

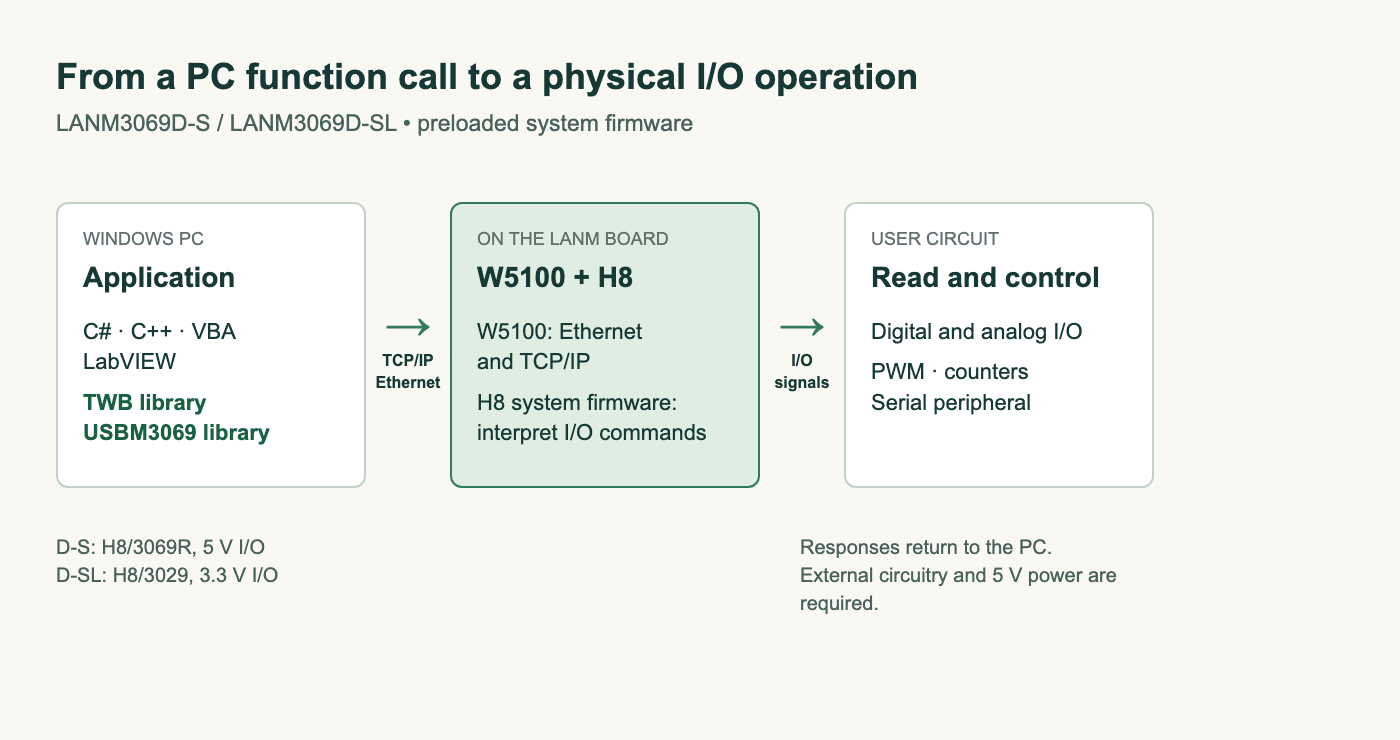

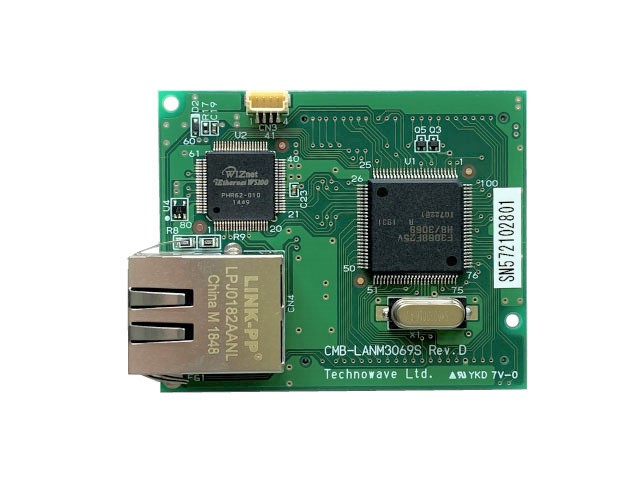

W5100 Remote I/O from a Windows Application Technowave, a manufacturer of industrial I/O and measurement-control equipment in Tokyo, Japan, sells the LANM3069D-S as a compact Ethernet I/O board. The board combines a Renesas H8/3069R microcontroller with a WIZnet W5100 and preloaded control firmware. A Windows application calls the supplied library to read inputs, change outputs and operate timers over Ethernet, making physical I/O available through ordinary software function calls. Remote I/O means that the electrical inputs and outputs sit beside the equipment, while the application that…
