Step-by-Step Guide to Building an AI Operating Status Indicator [Fully Open-Source Breakdown]

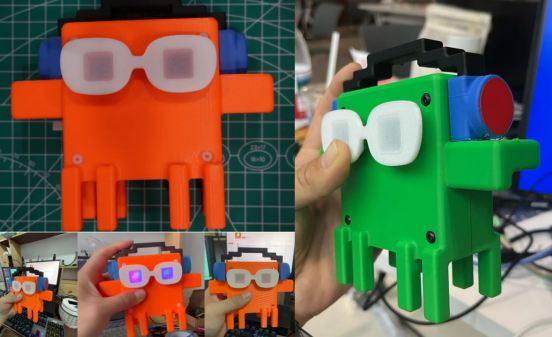

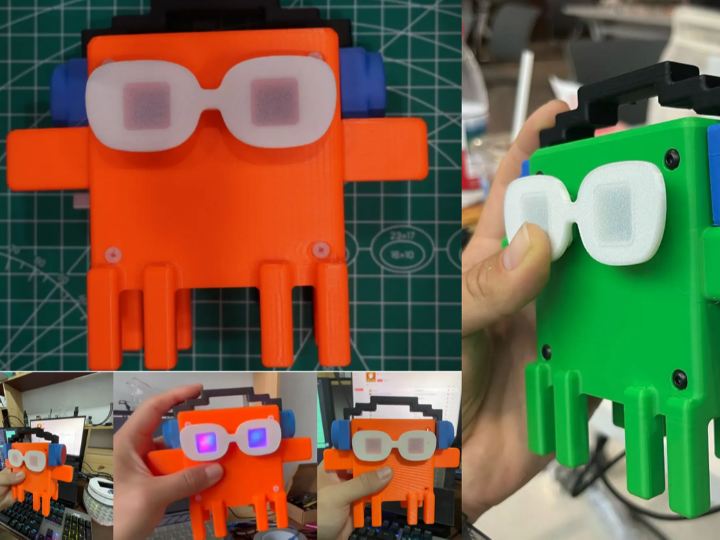

This fully open-source desktop hardware is an AI running status indicator built on WizFi360-EVB-Pico (RP2040 + WizFi360 industrial WiFi module).
0
![Step-by-Step Guide to Building an AI Operating Status Indicator [Fully Open-Source Breakdown]](/upload/_thumb/1280/project/44976/cover.jpg.jpg)
Components

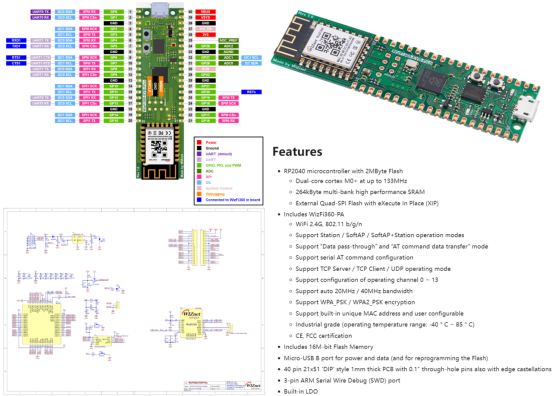

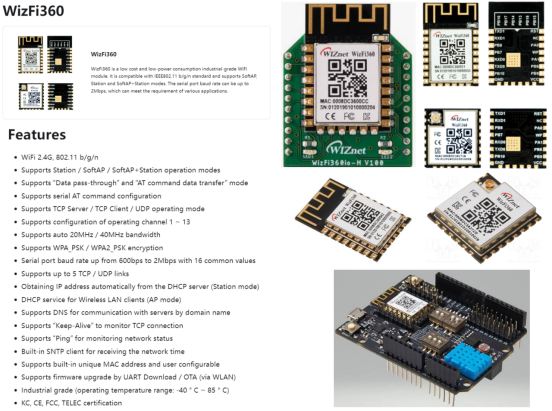

Hardware componentsWIZnet Co., Ltd. - WizFi360-EVB-Pico Evaluation Board
x 1
Full AT command drive, no complex TCP stack on MCU; supports 5 concurrent TCP/UDP links, 7×24h stable LAN online, OTA remote upgrade, industrial temp range -40℃~85℃
Generic Electronic Module Manufacturer - WS2812 Dual RGB LED Module
x 1

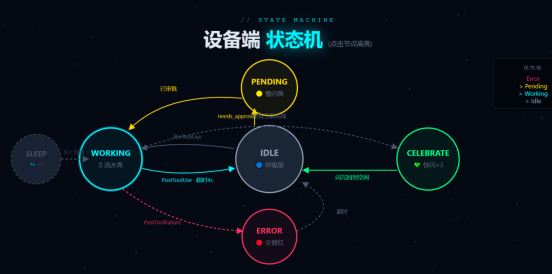

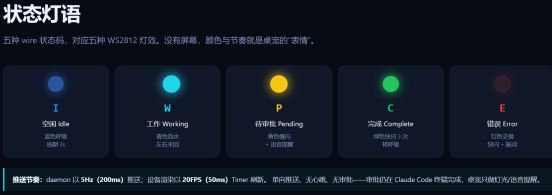

Dual addressable RGB LED, display distinct light animations for each AI working state including idle, running, error and completed
Analog Devices - MAX98357A I2S Audio Amplifier
x 1
I2S digital audio power amplifier, drive speaker for TTS voice prompt
Generic Audio Parts Supplier - 3W 4Ω Speaker 2. 3W 4Ω扬声器
x 1
Sound output unit, broadcast voice status alert from TTS audio
Generic Electronic Module Manufacturer - Vibration Motor & Vibration Sensor
x 1
Tactile vibration reminder, trigger vibration when AI task error occurs
Generic Power Module Manufacturer - Lithium Battery Charge Management Module
x 1
Manage lithium battery charging, power supply for whole desktop device

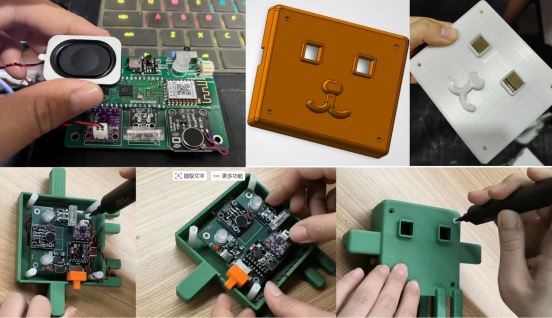

3D Printing Open Source - 3D Printed Enclosure with M3 Screws Hardware Kit
x 1
Custom housing for all circuit boards, assemble all hardware together
micropython - MicroPython
x 1
Run firmware on RP2040 to control WiFi, LED, audio and vibration hardware
Python Software Foundation - Python 3
x 1
PC-side TCP client daemon, capture AI task status and transmit data over LAN

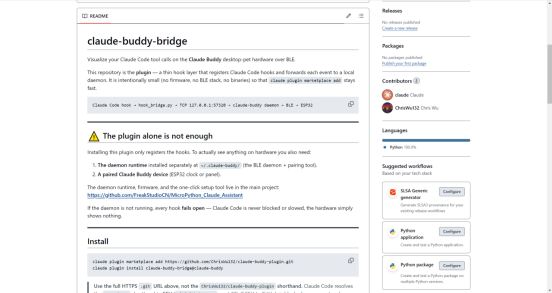

Anthropic - Claude Code Plugin
x 1
Hook tool to capture real-time running status of AI coding tasks
Autodesk - 3D CAD Modeling Software
x 1
Design 3D printable enclosure model for the desktop indicator hardware
Project description

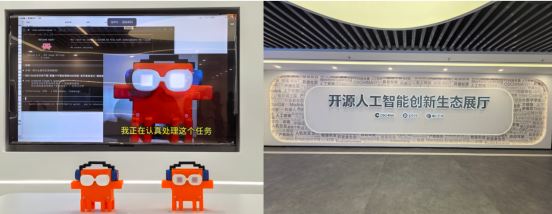

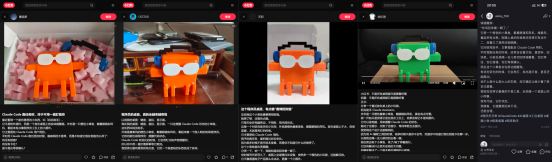

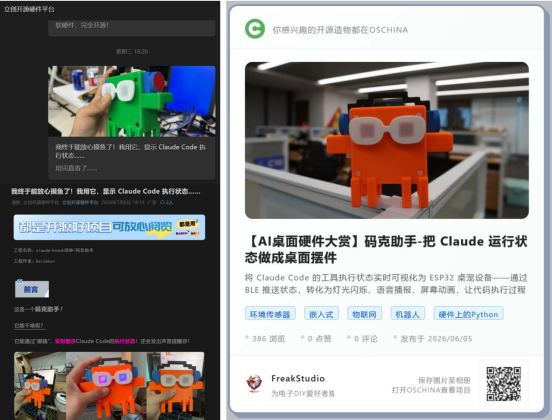

Step-by-Step Guide to Building an AI Operating Status Indicator [Fully Open-Source Breakdown] 0. Background Recently I've come across quite a few AI status indicator products of the same type, some in the shape of traffic lights, others in a minimalist disc design. Essentially, they all free up developers' line of sight, so you don' t have to stare at the terminal waiting for the AI to finish running tasks. As for myself, I started working on products in this very direction a long time ago — a desktop status ornament specifically tailored for Claude Code, which has evolved from the earliest…
