Artistic clock running on WizFi360-EVB-Pico

Components

Hardware components
WizFi360-EVB-Pico

WIZnet - WizFi360-EVB-Pico

x 1

WizFi360-EVB-Pico

Project description

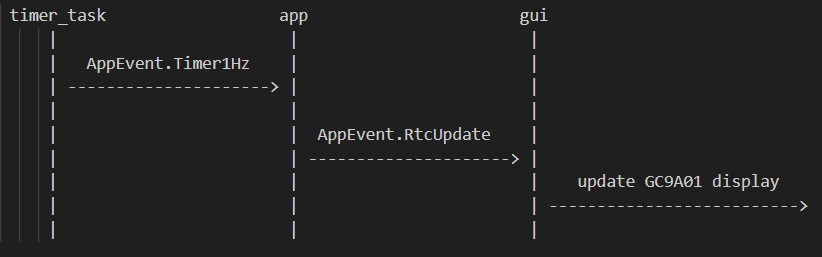

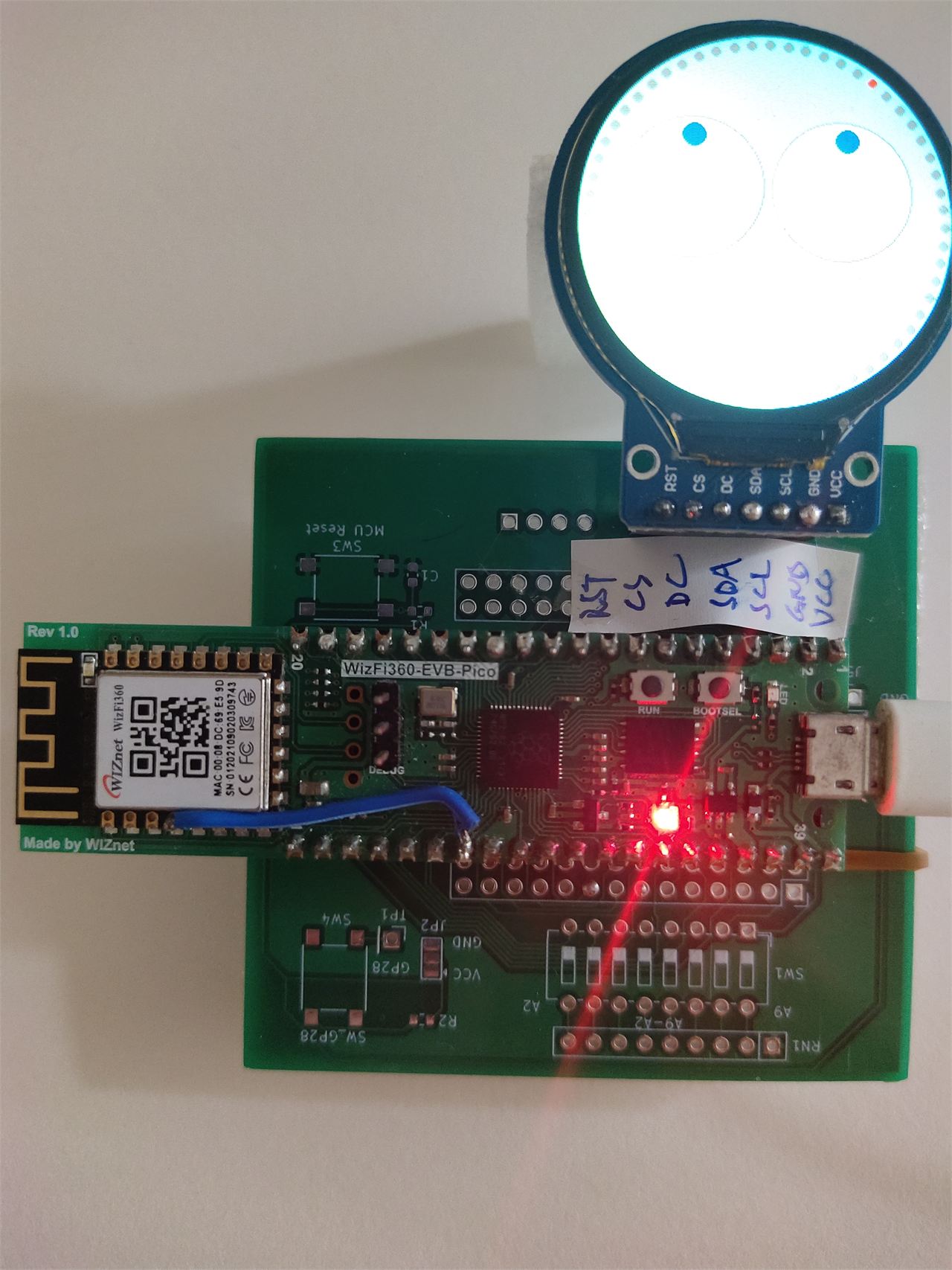

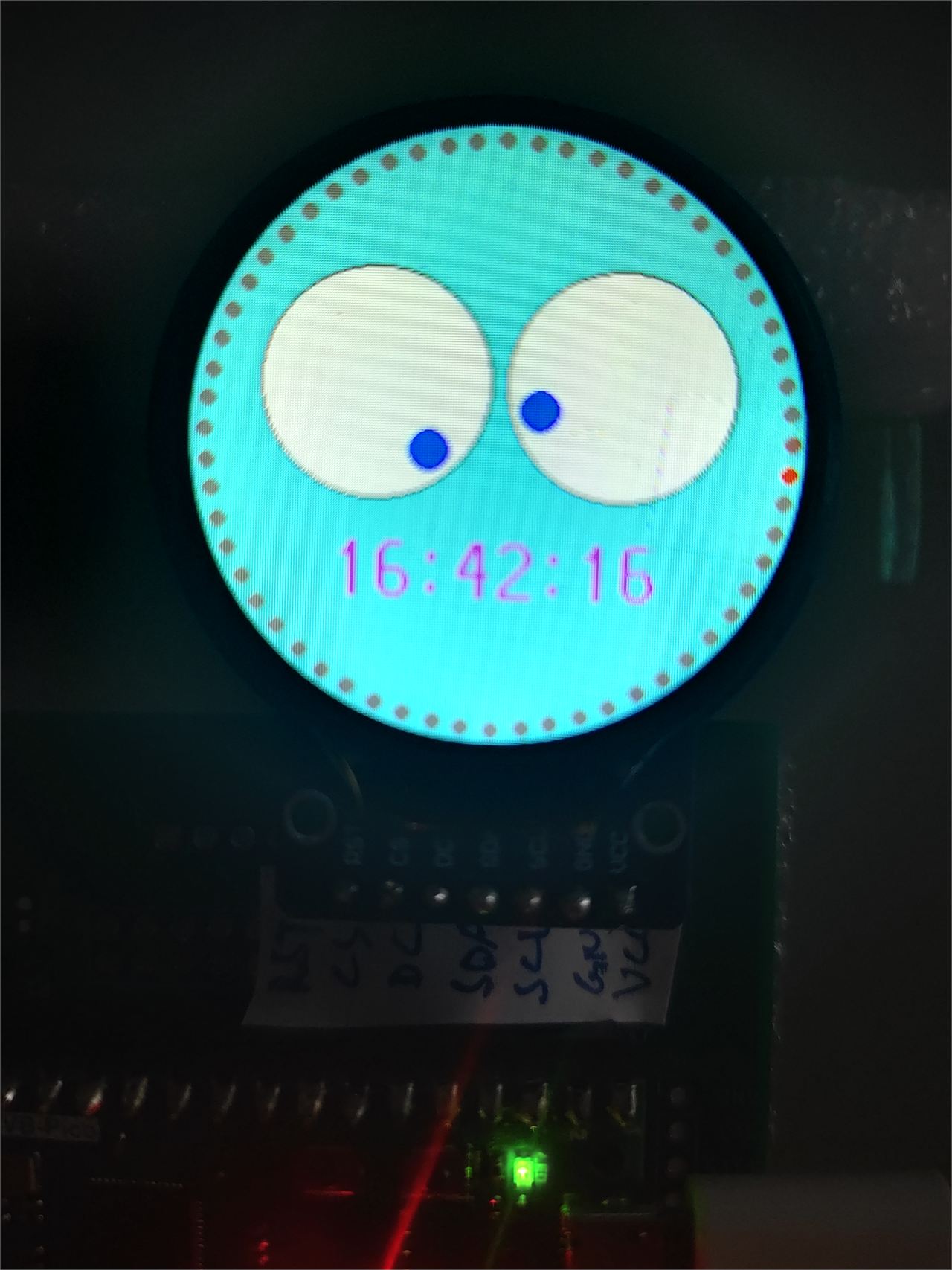

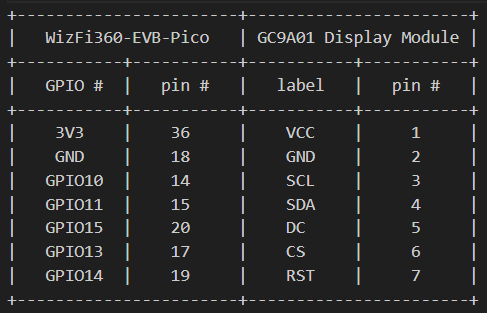

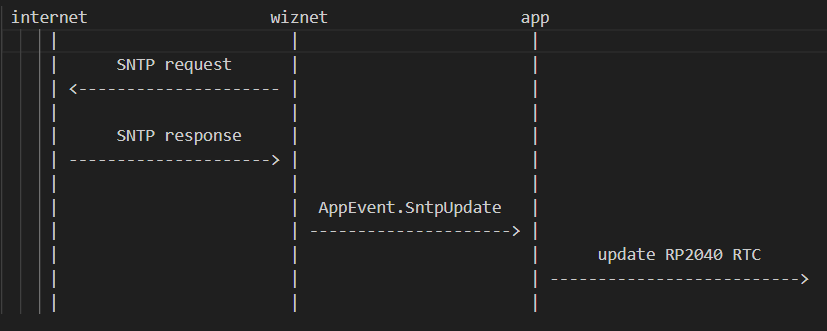

Introduction This projet leverages eyes UI to act as a clock. Hours and minutes are shown by left eye and right eye respectively. Second is shown by one of the sixty circles. Hardware The following components are required for this project: 1. [WizFi360-EVB-Pico] 2. [1.28" TFT LCD Display Module Round RGB 240 * 240 GC9A01] pins connection between WizFi360-EVB-Pico and LCD Display Module GC9A01 Software architecture There are three critical tasks in the system: App, GUI, and Wiznet. App functions as the system controller, managing and communicating with the other tasks. GUI responds to the RTC…
