Ethernet Module Development Board with Xbee SD Slot
itead W5100 Ethernet Module Development Board with Xbee SD Slot Project Examples for Arduino
2
Project description

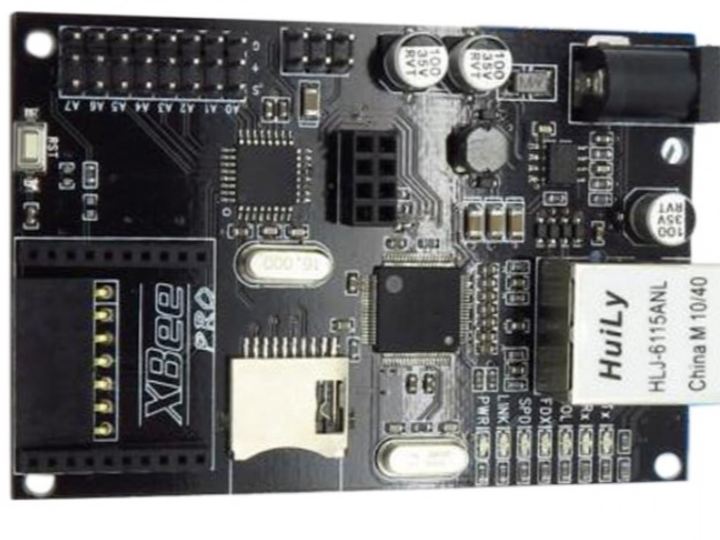

IBoard is a master control for Arduino development board + W5100 Ethernet chip composed of the board but also with a lot of electronic building blocks interface, various types of electronic building block module can easily add ITEAD offer. With the XBee interface board, you can easily expand wireless capabilities. How To Use A0 ~ A5 can also be used as a digital port , serial port can also be used as soft . A4 and A5 for the IIC bus , A4 is SCL, A5 is SDA. Steps: – For DIY, we will use these: IBoard main boars, nRF24L01+module, FOCA to seriel plate – Other accessories : Mini USB cable X1,9V…
