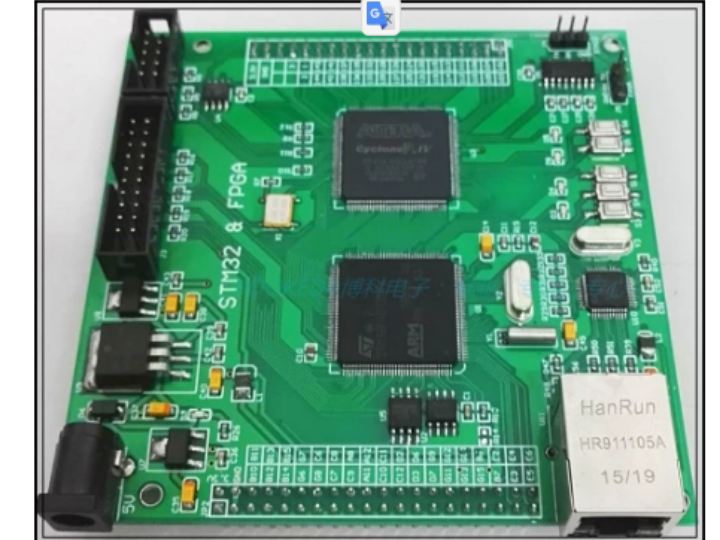

STM32 F407 + FPGA + Ethernet Dual Core Core Board Development Board Motion Control
The STM32F405xx and STM32F407xx series are based on a high-performance ARM® Cortex®-M4 32-bit RISC core operating up to 168 bytes.
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
STM32F407+FPGA+Ethernet Dual Core Development Board System Board Ultra High Cost Performance Motion Control Development board resource introduction: \ \ \ FPGA: Cyclone IV EP4CE10E22C8 \ FPGA configuration chip: EPCS4, 4M \ Arm: STM32F407ZGT6 \ Ethernet: W5500 10/100m \ FALSH: W25Q128, 128m capacity, can be used for SPI protocol storage experiments. \ EERPOM: AT24C64, 64 meters capacity, can carry out I2C protocol storage experiments \ Serial port: MAX3232 STM32 and FPGA serial port resource \ User Experiment LEDs: 4 pcs. 2 \ each for STM32 and FPGA User experiment button key: 4. 2 \ each…
