NUCLEO+W5500 Smart Home Gateway Data Sharing

mark

Published December 18, 2025 · © Apache License 2.0 (Apache-2.0)

117 UCC

8 WCC

23 VAR

Original author: 通宵敲代码 · ChinaOriginal source (new tab)

Project description

I recently worked on a NUCLEO+W5500 network manager, using SPI1 interface communication and 10M/100M adaptive network!

I'm sharing some related materials so we can all study it together!
If you're interested, please comment
below and leave your contact information. I'll send out a few boards once I've made them!

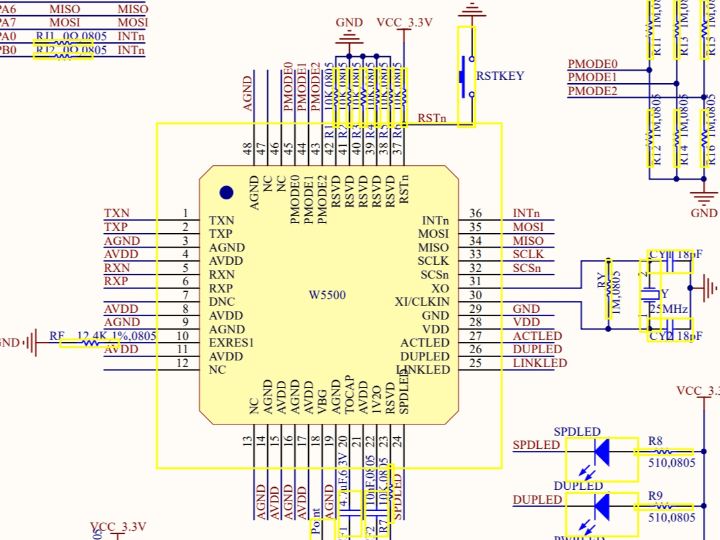

Here's the schematic; I haven't verified the PCB yet, so I won't upload it now.
