ENTHERNET W5100 MINI
W5100 Ethernet Network mini board, it based on the the WIZnet W5100 Embedded TCP/IP IC. This chip includes all the necessary support.
0
Project description

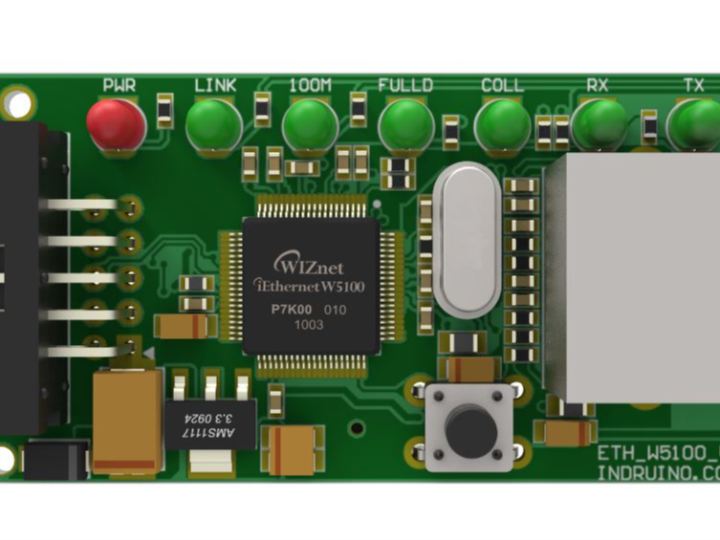

ENTHERNET W5100 MINI This is a W5100 Ethernet Network mini board, it based on the the WIZnet W5100 Embedded TCP/IP IC. This chip includes all the necessary support for network communication with a wide range of built-in hardware protocol support. Key features: - Converting TCP/IP to SPI and vice versa. - ESD protection. - RJ45 connector and IDC 3x2 - Status led indicators. - Small size, easy to intergrated into the system. Technical Specifications : - Power supply: 5 VDC - Max current: 500 mA - Interface: TCP/IP, UART - Max baudrate: 115200 bps - Duplex: Full/ Half - Power, status leds on…
