ENTHERNET W5100 MINI

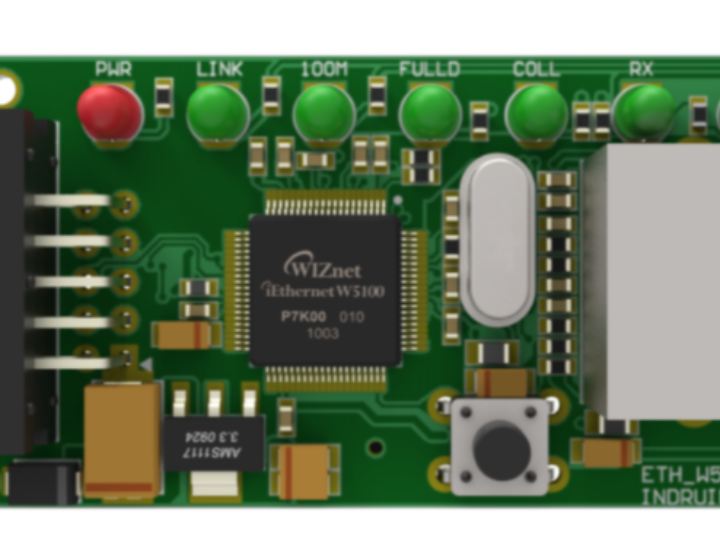

This is a W5100 Ethernet Network mini board, it based on the the WIZnet W5100 Embedded TCP/IP IC.
3
Project description
ENTHERNET W5100 MINI This is a W5100 Ethernet Network mini board, it based on the the WIZnet W5100 Embedded TCP/IP IC. This chip includes all the necessary support for network communication with a wide range of built-in hardware protocol support. Key features: – Converting TCP/IP to SPI and vice versa. – ESD protection. – RJ45 connector and IDC 3×2 – Status led indicators. – Small size, easy to intergrated into the system. Technical Specifications : – Power supply: 5 VDC – Max current: 500 mA – Interface: TCP/IP, UART – Max baudrate: 115200 bps – Duplex: Full/ Half – Power, status leds on…
