Online lecture: STM32 + W5500 cloud development

This is an online lecture of STM32 + W5500 and ESP8266 IoT cloud development.

chen

Published November 01, 2022 · © Apache License 2.0 (Apache-2.0)

90 UCC

1 WCC

12 VAR

Original author: Wangxiao · ChinaOriginal source (new tab)

Components

Hardware components

M5Stack - LAN Module with W5500

x 1

Project description

你将收获

wifi物联网学习

云平台开发了解

app开发学习

适用人群

电子类在校生，嵌入式工程师

课程介绍

支持wifi以太网双网络通信，支持阿里云MQTT通信，数据上传到阿里生活平台，阿里云IoT Studio web可视化开发，支持onenet MQTT与http通信，onenet web可视化开发。使用Android Studio 自主写一个MQTT手机app远程控制。

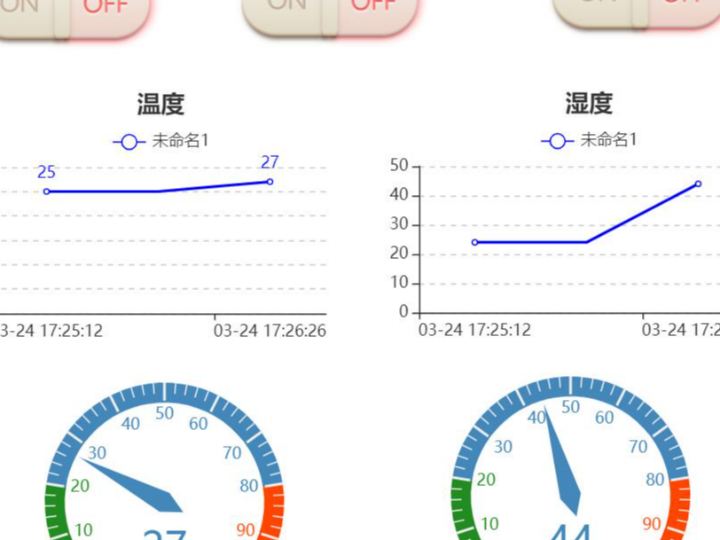

onenet WEB界面

支持wifi以太网双网络通信，支持阿里云MQTT通信，数据上传到阿里生活平台，阿里云IoT Studio web可视化开发，支持onenet MQTT与http通信，onenet web可视化开发。使用Android Studio 自主写一个MQTT

onenet 手机界面：下载onenet设备云app即可app控制监控。

阿里云IOT studio WEB界面：
