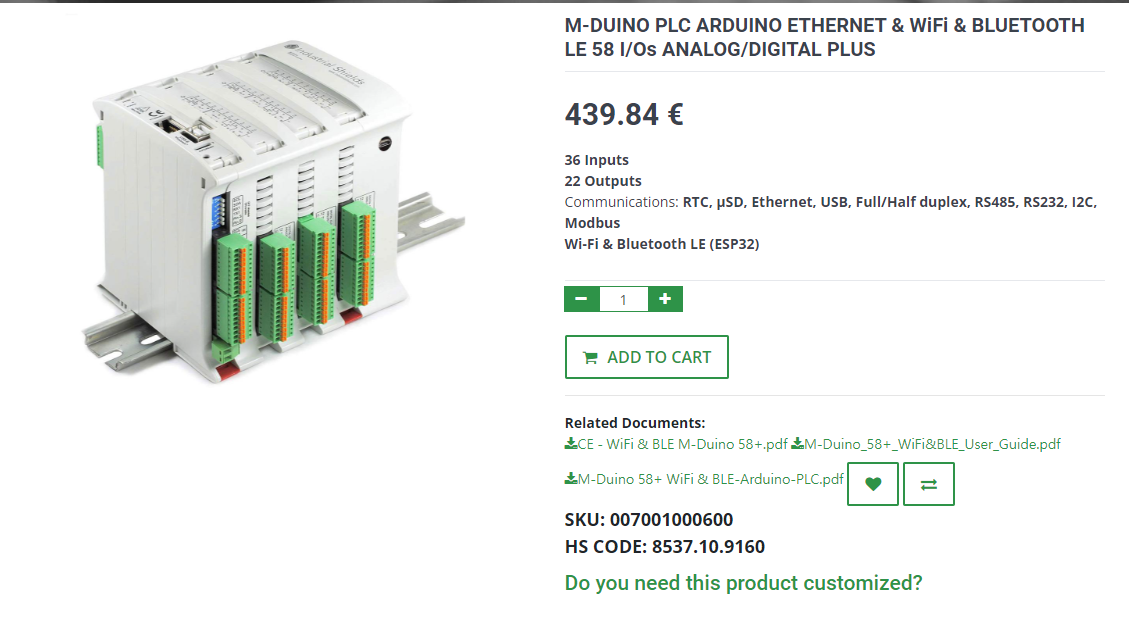

M-DUINO PLC ARDUINO ETHERNET & WiFi & BLUETOOTH LE 58 I/Os ANALOG/DIGITAL PLUS

M-DUINO PLC ARDUINO ETHERNET & WiFi & BLUETOOTH LE 58 I/Os ANALOG/DIGITAL PLUS

COMPONENTS
PROJECT DESCRIPTION

Description
Inputs, Outputs, Communications and other technical specifications



Inputs (Arduino Mega included)

– 36 Inputs:

(16x) Analog Inputs (0-10Vdc, 10bit) / Digital Inputs (5-24Vdc) configurable by software.

(20x) Isolated Digital Inputs (5-24Vdc)

(6x) Interrupt Inputs (5-24Vdc). "Can work like Digital Input (5-24Vdc)



Communications

- (1x) WiFi & Bluetooth LE (based on ESP32)

– (1x) Ethernet port.

– (1x) USB port (type B).

– (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)

– (1x) RS-232 port.

– (1x) HALF/FULL Duplex RS-485 port.

– (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)

– TCP IP / Modbus TCP. / Modbus RTU

– WebServer capacity (just through Ethernet)

– Industrial Protocols



Outputs (Arduino Mega included)

– 22 Outputs:

(14x) Isolated Digital Outputs (5-24Vdc) / (8 of which) PWM configurable by software.

(8 of which) Analog Outputs (0-10Vdc)



Other technical specifications

RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)

µSD Socket (using SPI port, chip select D53 pin).

100x75x115mm

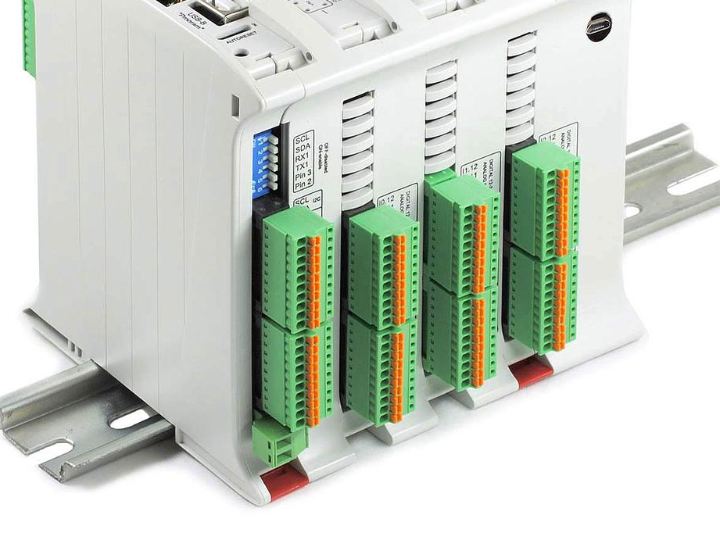

DIN Rail mounting.

Max consum.: 1.2A

Flash Memory: 256kB (8kB for bootloader)

SRAM: 8kB

EEPROM: 4kB

Clock Speed: 16MHz

*For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)



Arduino PLC based details

Industrial Automation


Modular PLC
This is the first equipment based on the Arduino technology designed for a professional use. This PLC has 58I/Os. It also contains several communication ports which provide more flexibility and control. The GPRS Controllers family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

Instantaneous connection and coding
The GPRS Controller is programmed through the USB ports. This PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, mantain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox , M-duino and the Touchberry Pi with an instantaneous connection.
