iConn5100M

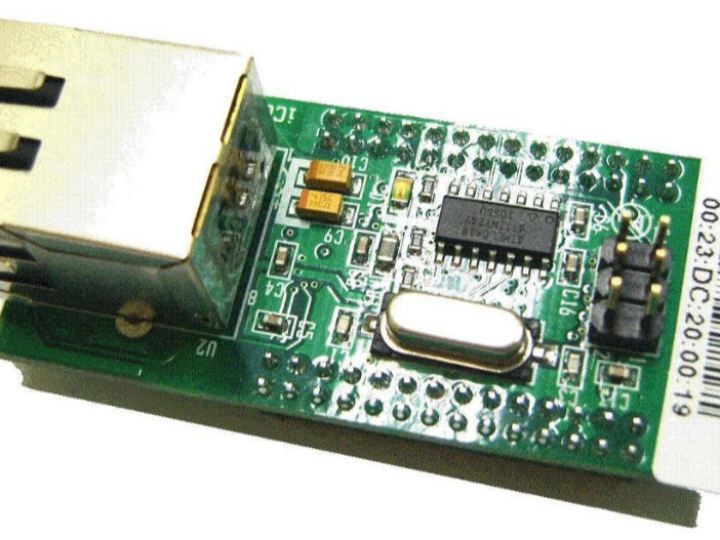

This is an Ethernet module called iConn5100M using the same W5100 chip
3
Project description
• Supports 10/100 Base TX • Supports Half/Full duplex • Supports Auto-negotiation, Auto Crossover Detection • IEEE 802.3/802.3u Compliant • 5V Tolerant I/O, 3.3V Operation • Network Status Indicator LEDs • Hardware Internet Protocols: TCP /IP v4, UDP, ICMP, ARP, PPPoE, IGMP • Hardware Ethernet Protocols : DLC, MAC • 4 independent Channels • MCU bus Interface and SPI Interface • Direct/Indirect mode bus access • Socket API for Application Programmer: W5100 Driver , DHCP, SMTP, DNS, DDNS, etc. • 2 x 2.0mm pitch 2*14 header pins
