ITEAD W5100 ETHERNET SHIELD V1.1 WITH POE AND MICRO-SD CARD SLOT FOR ARDUINO 2009 UNO DUEMILANOVE
ITEAD W5100 ETHERNET SHIELD V1.1 WITH POE AND MICRO-SD CARD SLOT FOR ARDUINO 2009 UNO DUEMILANOVE
2
Project description

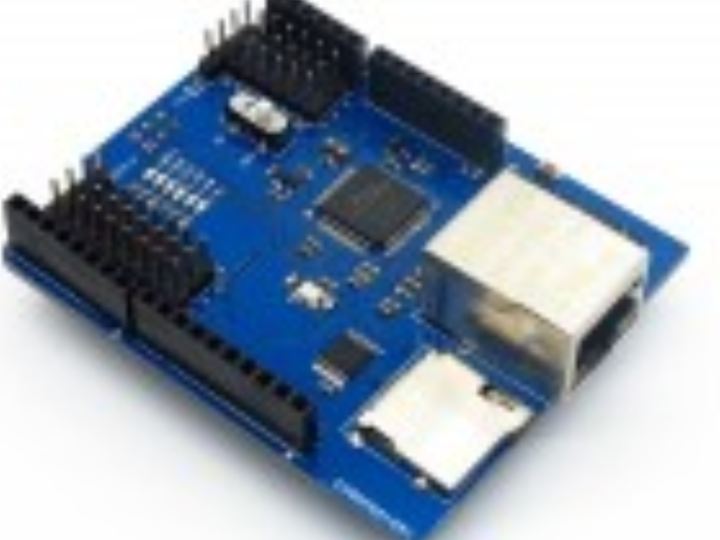

INTRODUCTION W5100 Ethernet shield V1.1 is a WIZnet W5100 breakout board with POE and Micro-SD designed for Arduino platform. 5V/3.3V compatible operation voltage level makes it compatible with Arduino boards, leafmaple, and other Arduino compatible boards except Mega boards. Note: the POE of W5100 shield is dummy POE. Because in the 100M ethernet wire, 7/8 pins are not used. It will be connected to VIN pin of arduino board directly. FEATURES With Micro SD socket 5V/3.3V double operational voltage level 10Mb/100Mb Ethernet socket with POE All electronic brick interface are broken out HOW TO…
