Risym W5100 Ethernet network module

.

WIZnet

Published February 08, 2023

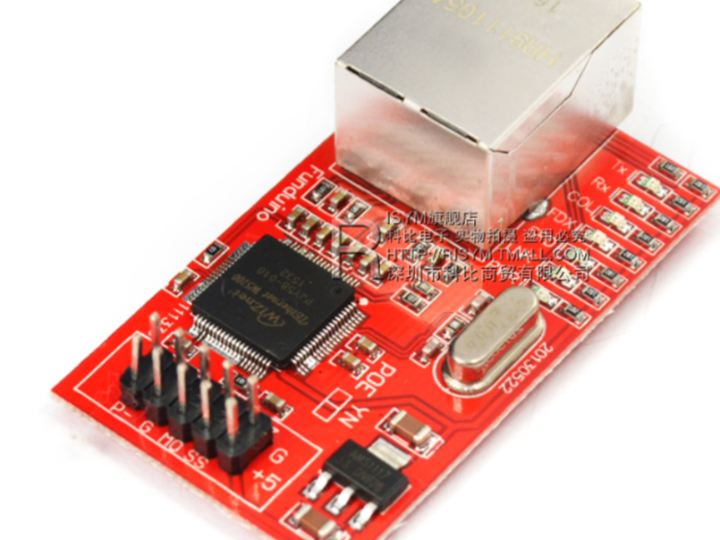

Risym W5100 Ethernet network module

Project description

DETAILS

URL

Risym W5100 Ethernet network module multi-interface multi-protocol network expansion board electronic building blocks

Key Features

  1. Host Interface : Direct/Indirect Bus & Serial Peripheral Interface (SPI MODE 0, 3)
  2. Hardwired TCP/IP protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  3. 4 Independent hardware socket
  4. Internal 16Kbytes memory for TCP/IP packet processing
  5. LED outputs (TX, RX, full/half duplex, Collision, link, speed)
  6. Support Auto-MDIX
  7. 3.3V Operation with 5V I/O signal tolerance
  8. RJ-45 on board; 2×40 Pin 2.0mm pin header
