W5500 PoE Drainage Gauge for Smart Irrigation

W5500 PoE node reports drainage volume over MQTT and UECS-CCM.

Benjamin

Published June 05, 2026

Original author: yasunori oiOriginal source (new tab)

W5500 PoE Drainage Gauge for Smart Irrigation

Components

Hardware components Software Apps and online services

WIZnet parts

Project description

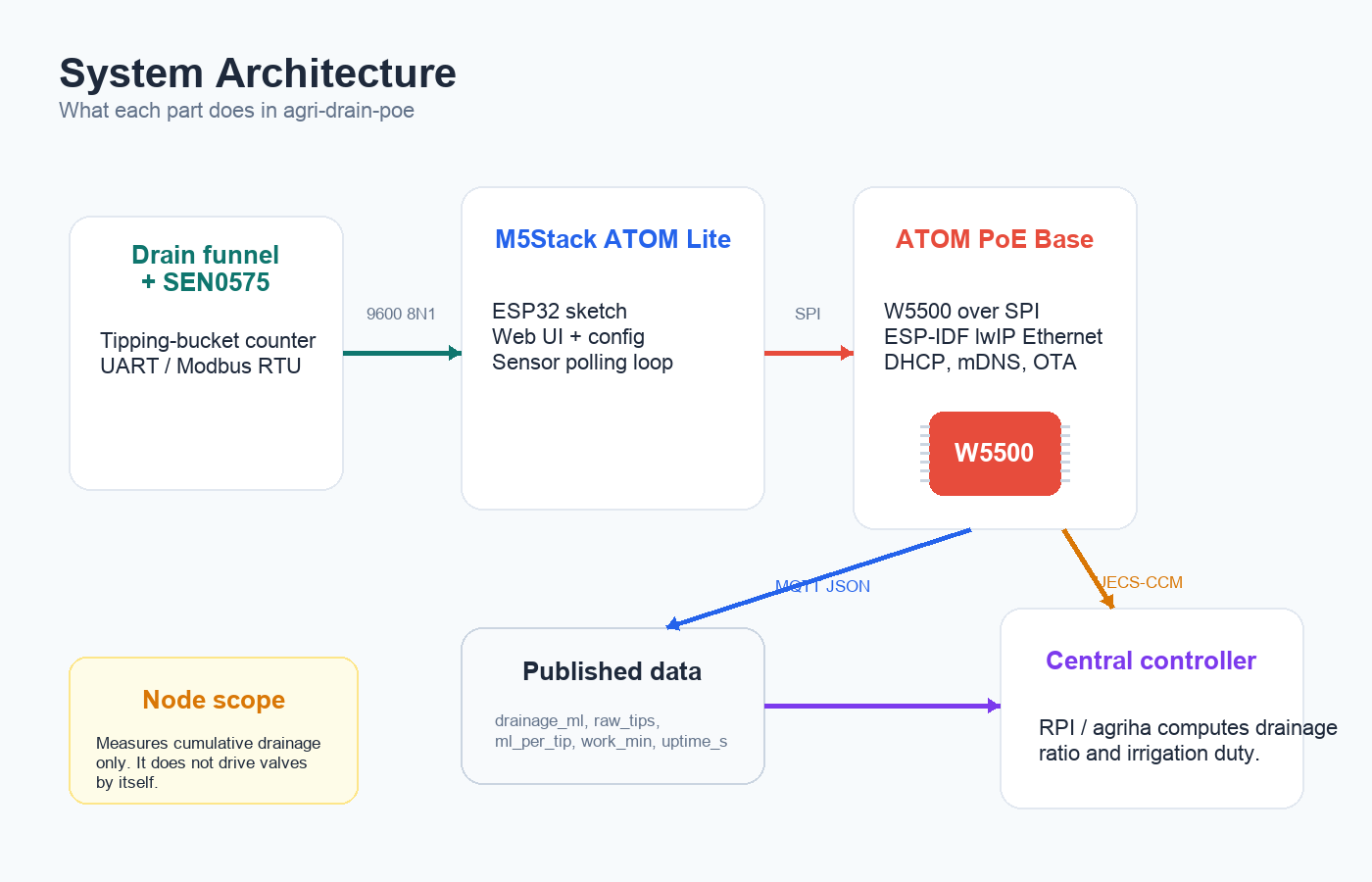

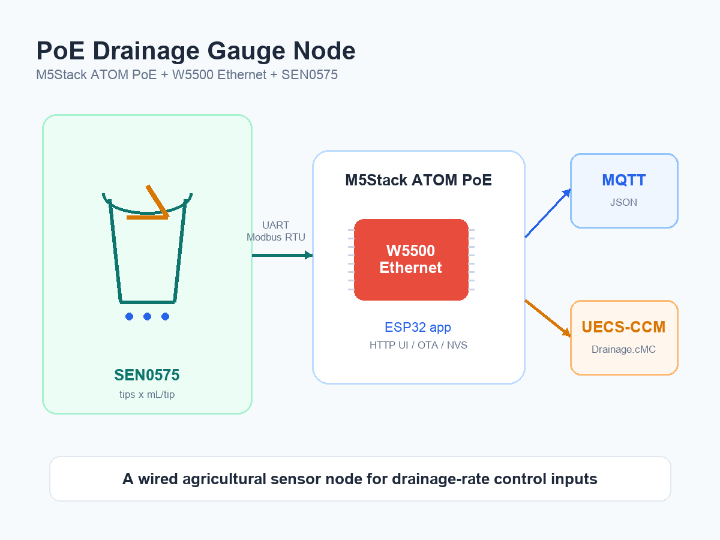

W5500 PoE Sensor Node for Drainage Data agri-drain-poe is a compact smart-agriculture sensor node that measures irrigation drainage volume and publishes it over wired Ethernet. It uses an M5Stack ATOM Lite with an M5Stack ATOM PoE Base, where the Ethernet interface is provided by a WIZnet W5500. A DFRobot SEN0575 tipping-bucket rainfall sensor is repurposed as the drainage gauge: each bucket tip is multiplied by a configurable mL per tip calibration value, producing cumulative drainage volume in milliliters. The project is interesting because it is not a generic cloud demo. It is a small…

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
