esp32s3-8di8ro-controller

.

esp32s3-8di8ro-controller

Components

Hardware components

WIZnet parts

Project description

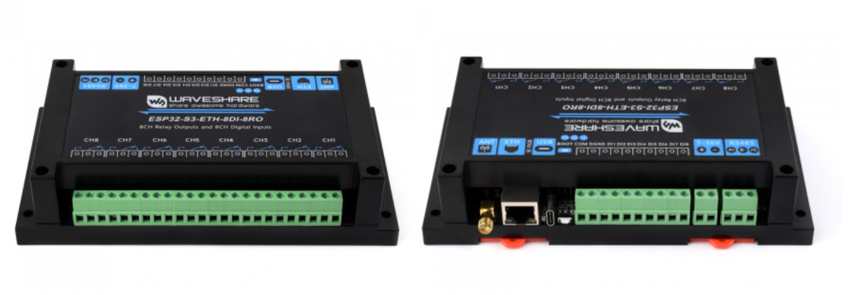

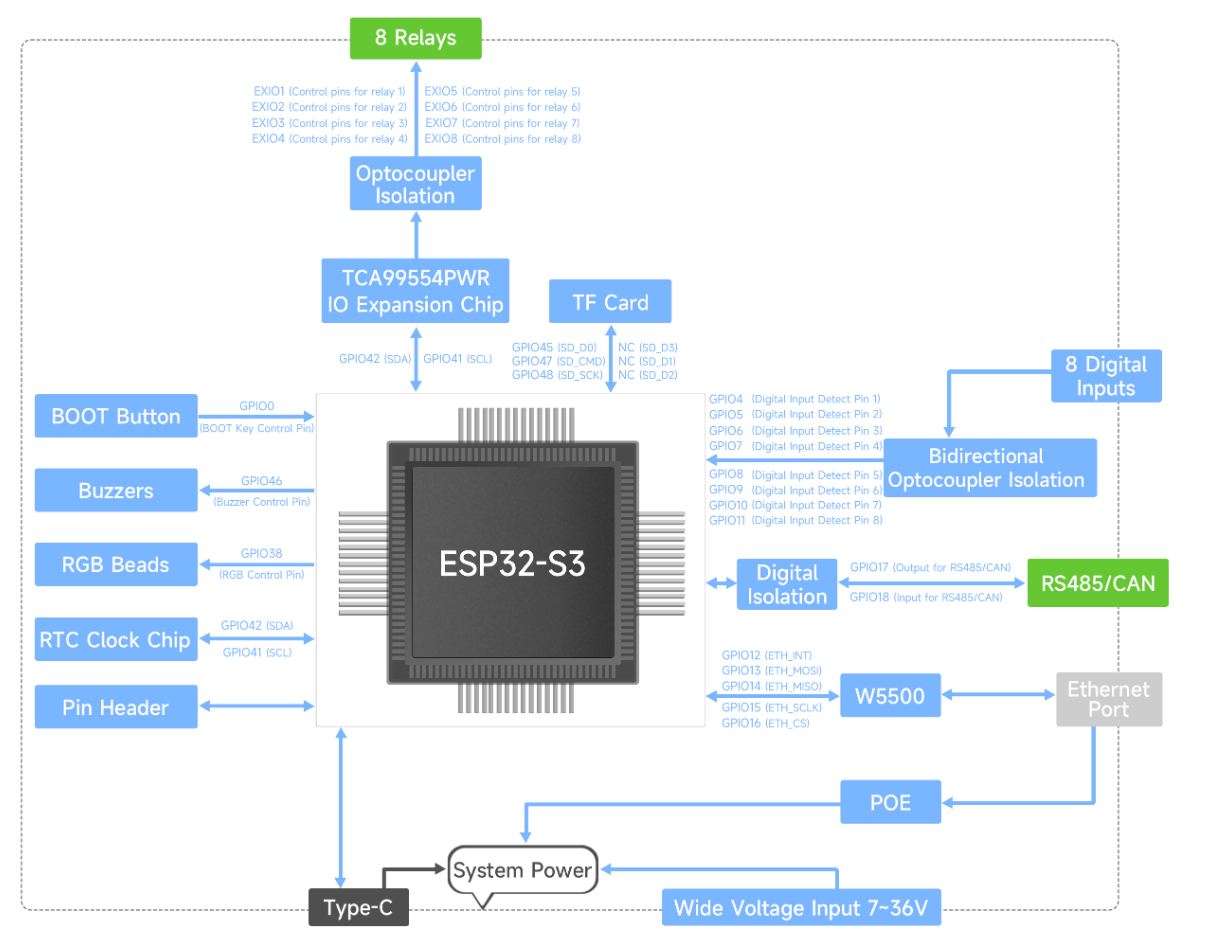

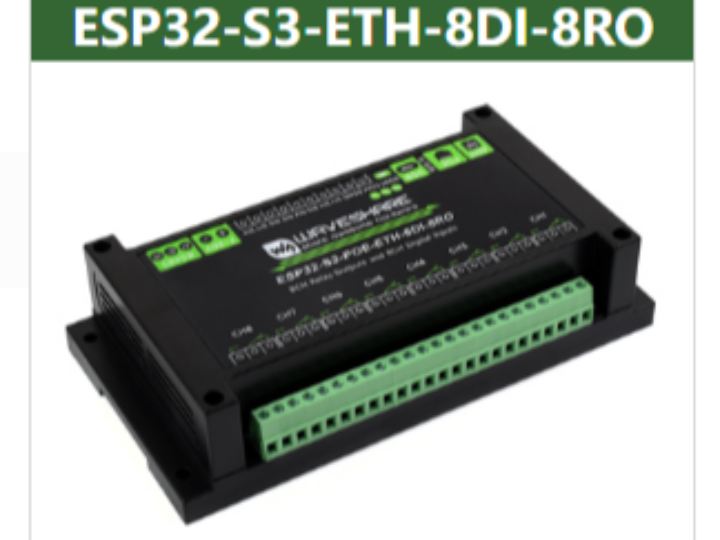

Overview The ESP32-S3-ETH-8DI-8RO is an industrial 8-channel network relay module based on the ESP32-S3, supporting Wi-Fi, Bluetooth, RS485, and Ethernet for immediate use in a wide range of AIoT environments. With built-in power, digital, and optocoupler isolation, it operates reliably even in high-voltage or noisy conditions, and its eight 10A relay channels allow control of various external devices. It features USB Type-C firmware download, a wide 7–36V power input range, RS485 (Modbus) and GPIO expansion, as well as an RGB status LED and buzzer. System Architecture Features Integrated…
