How Does a 10BASE-T1L Field Port Reach Standard Ethernet Through a W5500?

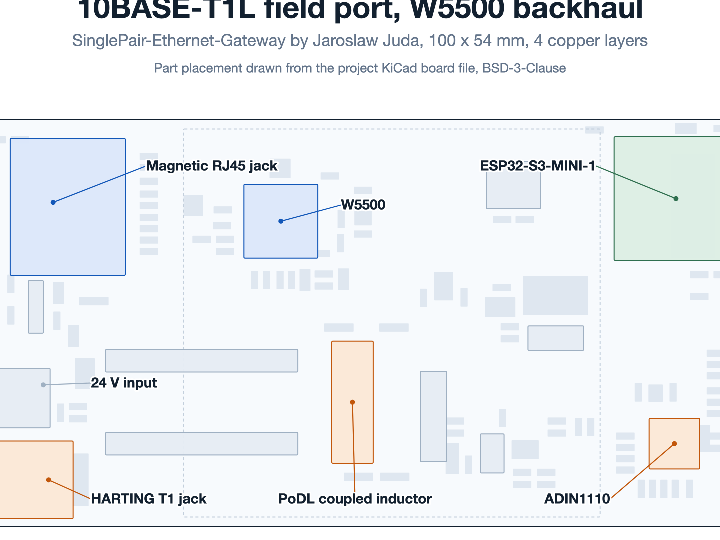

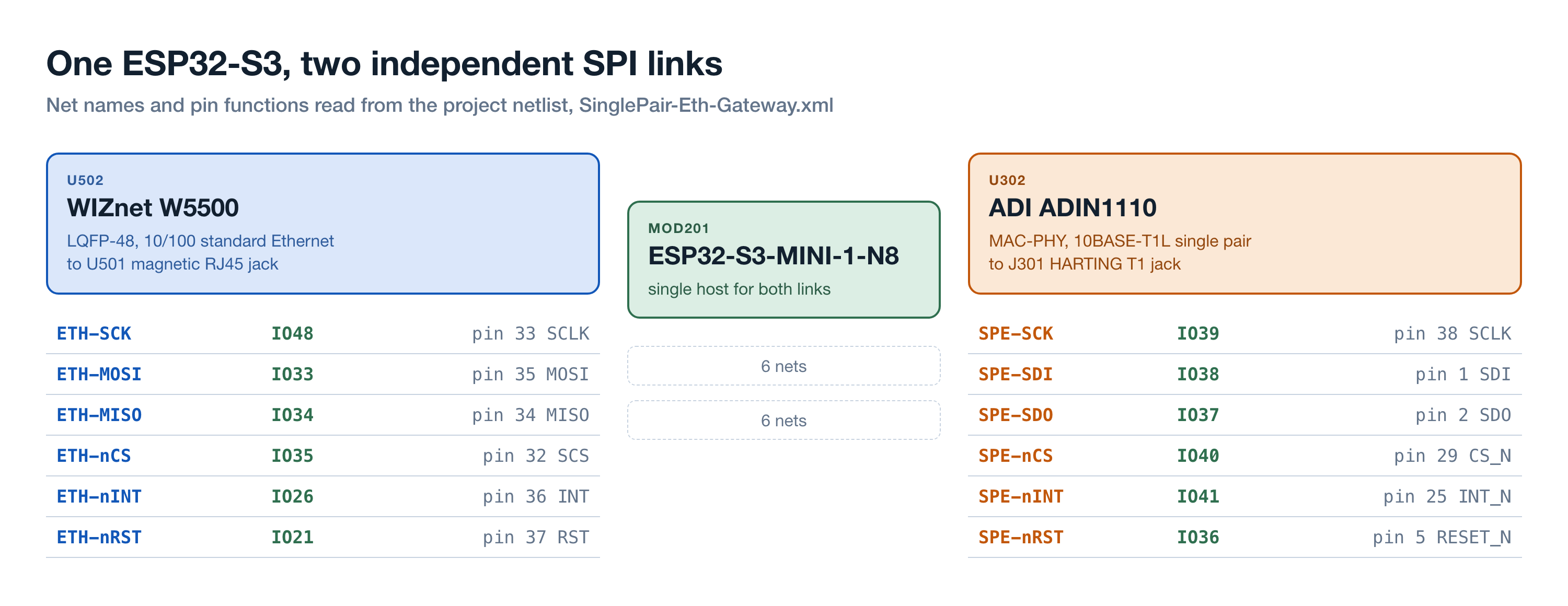

In this open KiCad gateway an ADIN1110 holds the 10BASE-T1L pair and a W5500 carries it onto standard Ethernet, both on one ESP32-S3 over separate SPI buses.

Benjamin

Published August 27, 2026 · © 3-Clause BSD License(BSD-3-Clause)

Original author: Jaroslaw Juda · PolandOriginal source (new tab)

How Does a 10BASE-T1L Field Port Reach Standard Ethernet Through a W5500?

Components

Hardware components

WIZnet parts

Project description

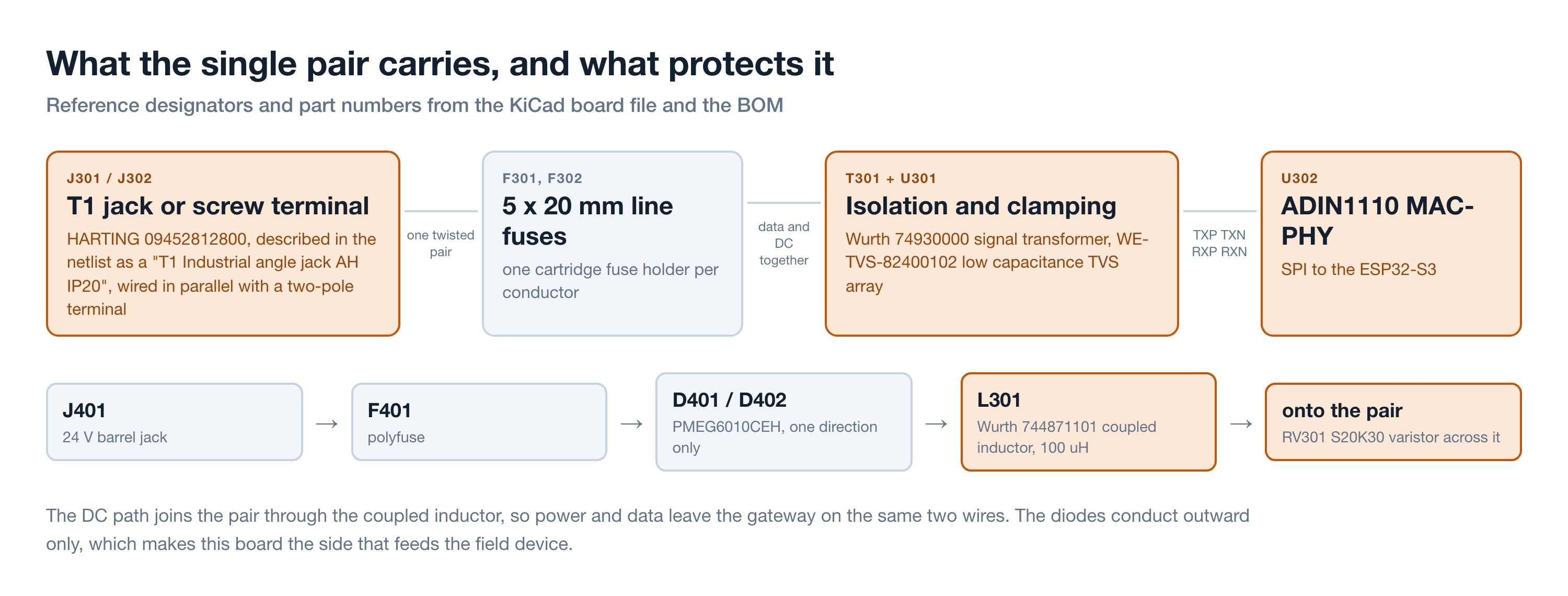

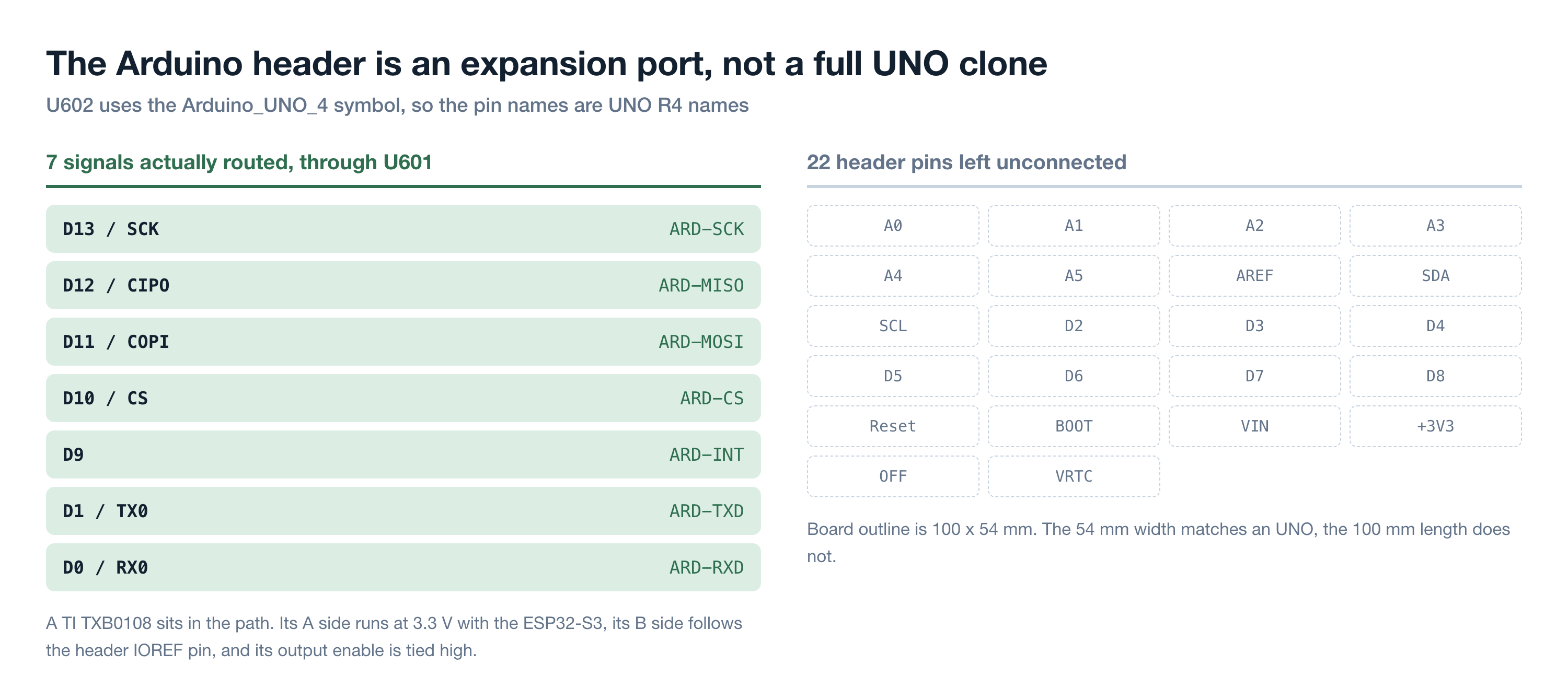

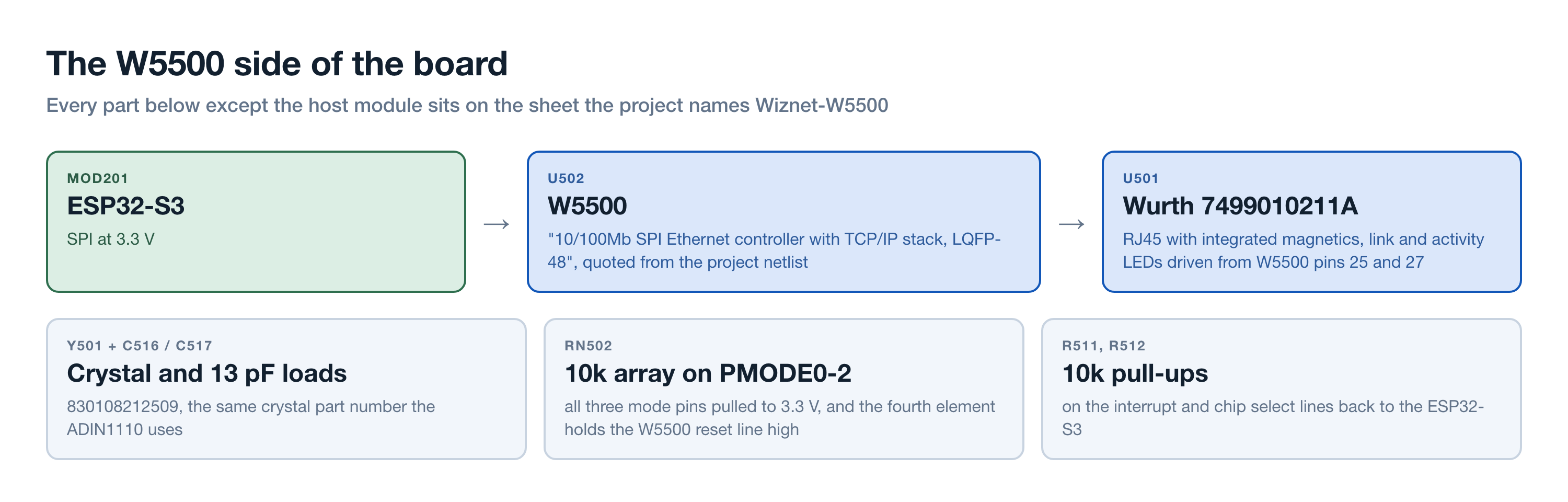

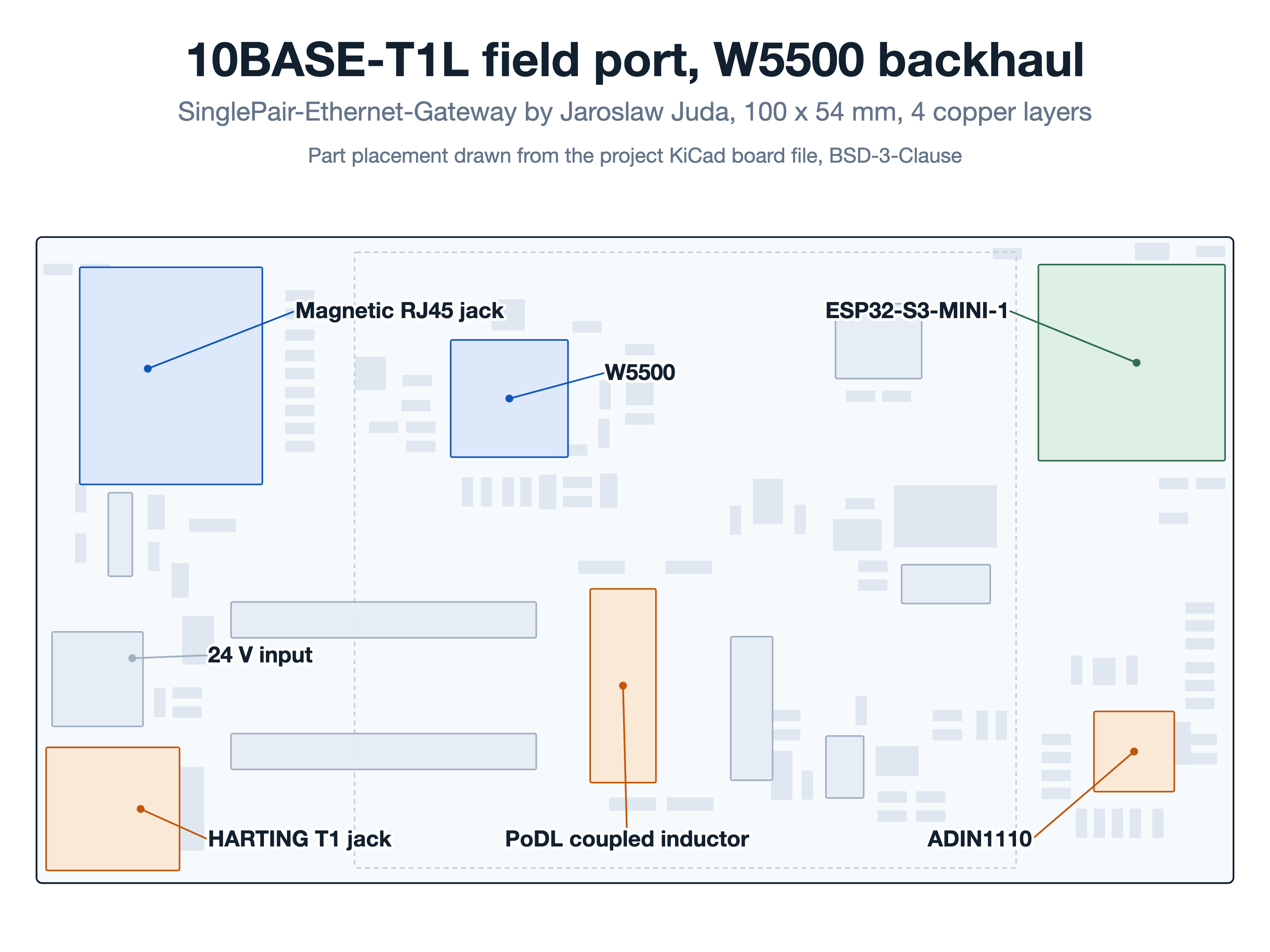

Two Ethernet Types on One 100 x 54 mm Board Jaroslaw Juda gives Torun, Poland as his location on a GitHub account holding six public repositories, among them the Analog Devices ADIN1100 non-OS driver, a fork of the PcapPlusPlus packet library, and his own KiCad hardware. SinglePair-Ethernet-Gateway is one of those designs, published under BSD-3-Clause with the notice "Copyright (c) 2024, Jaroslaw Juda". A 10BASE-T1L instrument speaks Ethernet over one twisted pair, the network it must join speaks Ethernet over an RJ45, and this board is the piece between them. A WIZnet W5500 is its RJ45…
