YB-ESP32-S3-ETH - Ethernet + WiFi Development Board

General purpose development board based on WIZnet's W5500 and Espressif's ESP32-S3 MCU. With RJ45 Ethernet connector, PHY bridge chip W5500, USB-C, 2 LEDs

yellobyte

Published February 16, 2025 · © MIT license (MIT)

1 UCC

Original source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

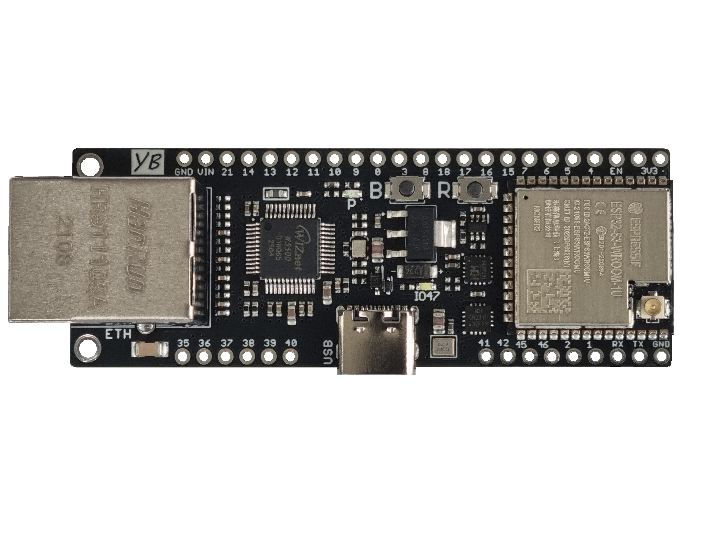

YB-ESP32-S3-ETH board overview: The board enables you to easily realize ESP32 projects with Ethernet or combined Ethernet/WiFi support. A collection of software examples (for PlatformIO and/or ArduinoIDE) are available on https://github.com/yellobyte/YB-ESP32-S3-ETH. The densly populated YB-ESP32-S3-ETH board provides multiple GPIO pins and is still highly breadboard compatible for it leaves one row of accessible breadboard contacts on either side of the board. All I/O ports (GPIOx) are labeled on both sides of the board. If WiFi/BT is needed instead of or additionally to an Ethernet…
