What Does the HATRON PLCino Gain from Its Optional W5500 Ethernet Module?

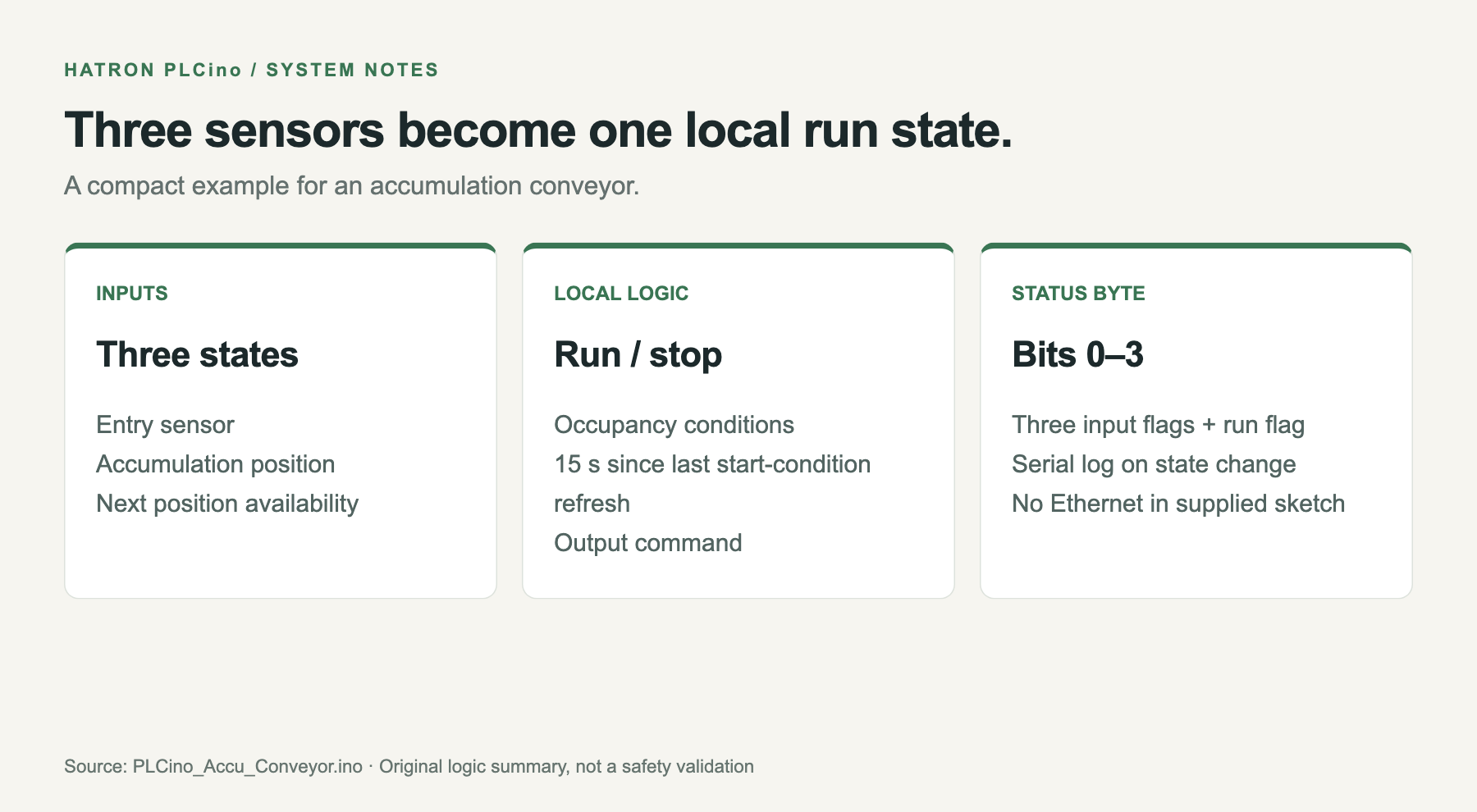

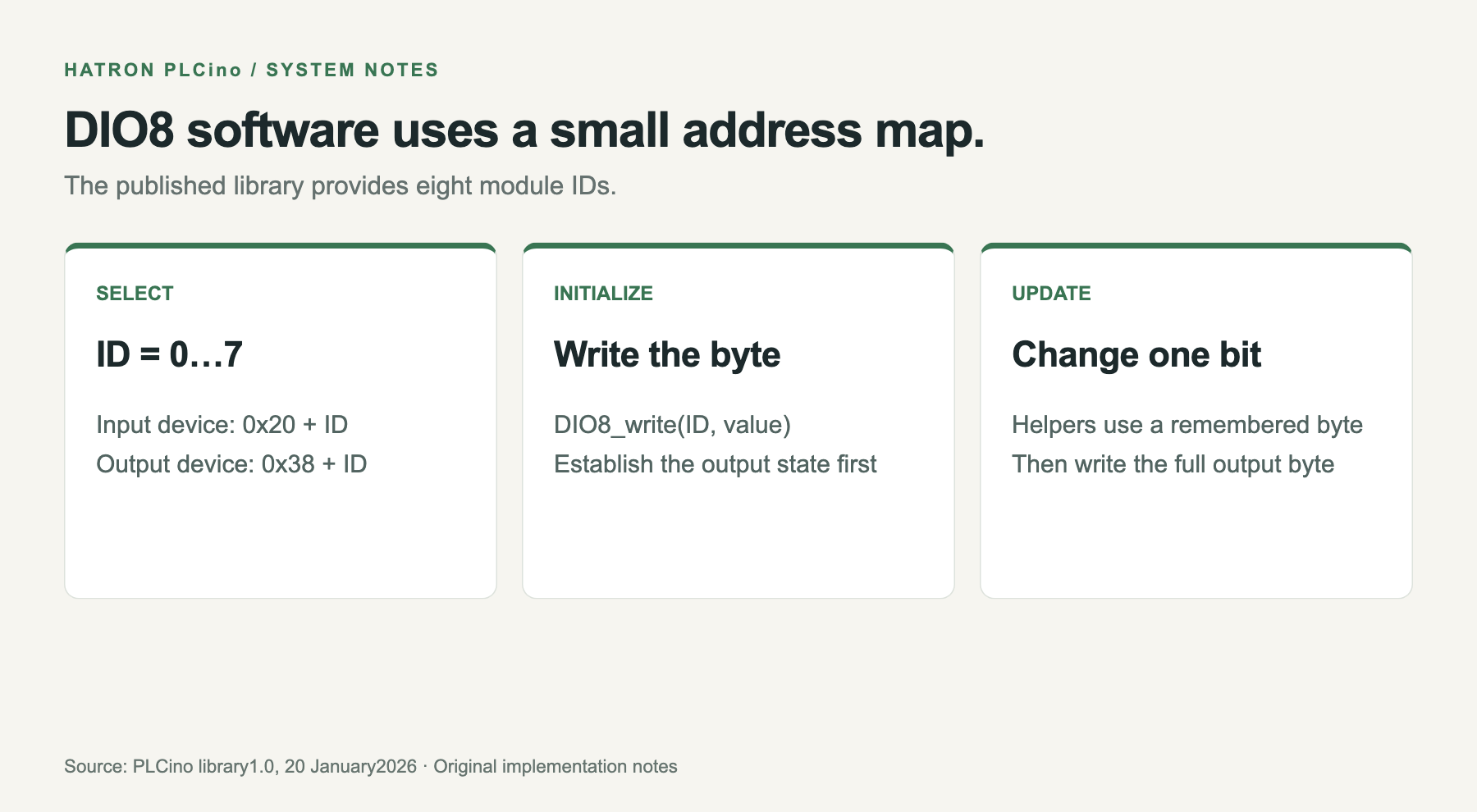

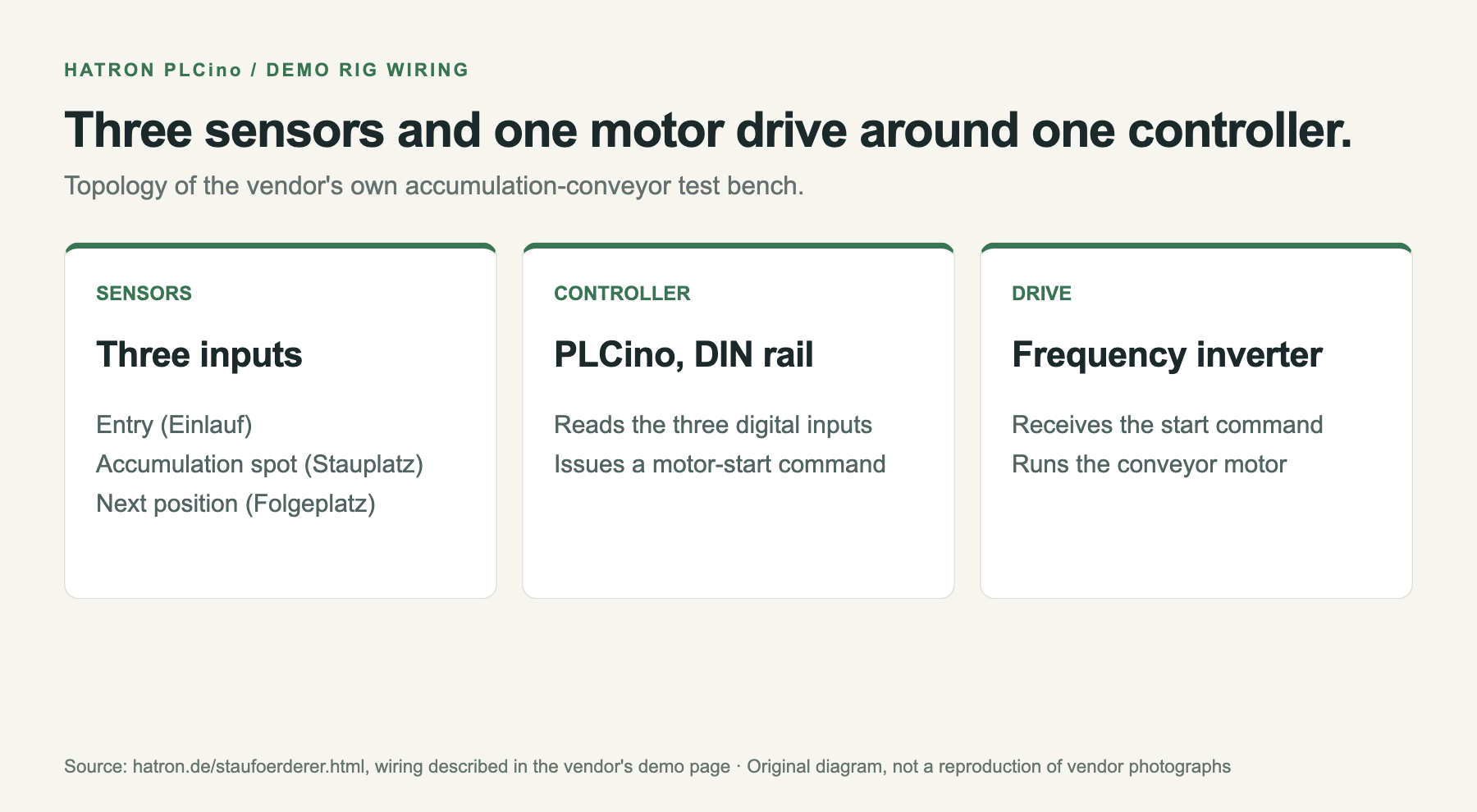

HATRON pairs Arduino Micro-compatible 24 V control with an optional HT008 W5500 module, DIO8 expansion and a public conveyor example.
0
Components
Hardware components
WIZnet - W5500
W5500 Ethernet controller in the separately purchased HATRON HT008 module. It connects to PLCino through the SPI extension interface and is documented in the vendor R1.0 schematic.
Project description

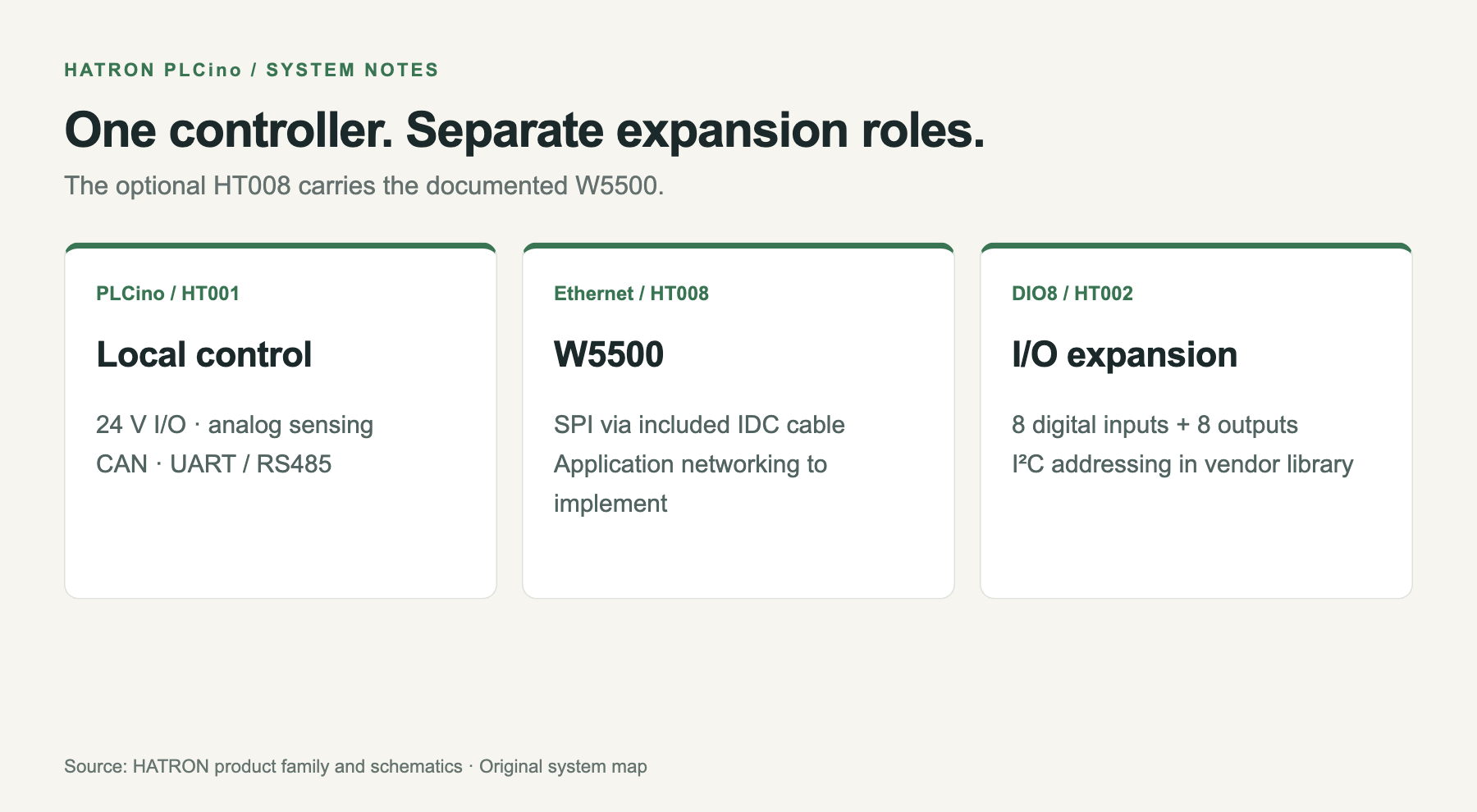

A Network Option Beside the Local Controller The HATRON PLCino is a DIN-rail controller for small automation jobs: read industrial sensors, switch low-current outputs and run application logic written with the Arduino IDE. Ethernet arrives through a separate module, HT008, which connects to the controller over an IDC cable. HATRON explicitly identifies the network chip as the W5500. HATRON GmbH is based in Steinhagen, Germany, and offers electronics, software, manufacturing and control-cabinet services. It describes PLCino as an Arduino Micro-compatible derivative with industrial interfaces…
