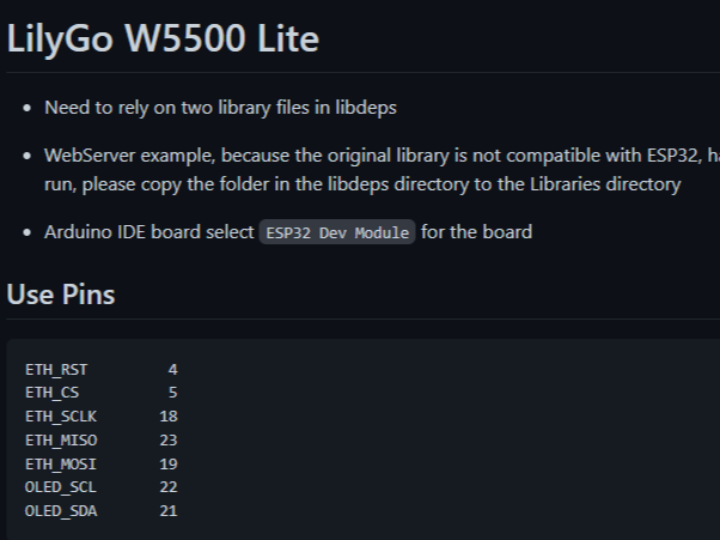

LilyGo W5500 Lite

Need to rely on two library files in libdeps

WebServer example, because the original library is not compatible with ESP32, has been modified, if you need to run, please copy the folder in the libdeps directory to the Libraries directory

Arduino IDE board select ESP32 Dev Module for the board

Use Pins

ETH_RST         4
ETH_CS          5
ETH_SCLK       18
ETH_MISO       23
ETH_MOSI       19
OLED_SCL       22
OLED_SDA       21
