W5500 Ethernet Communication

WIZnet

Published July 03, 2023

Original author: ocrobotOriginal source (new tab)

Project description

DOCUMENTS

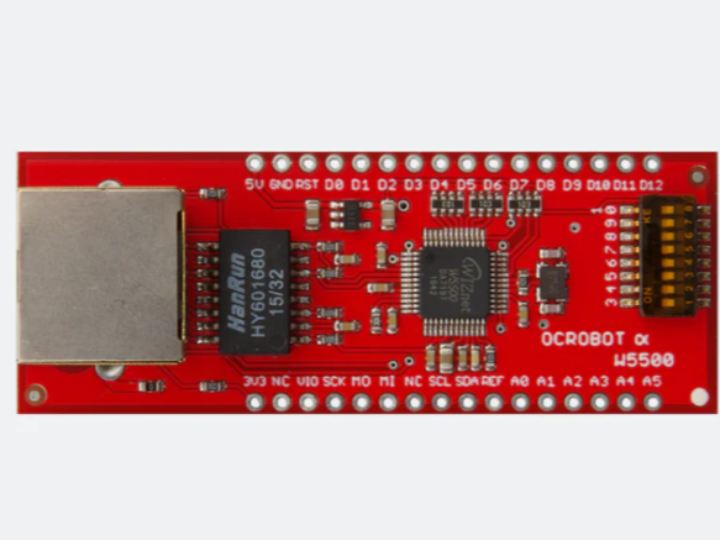

OCROBOT ALPHA W5500 is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems.

FEATURES

Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)

PHYSICAL PARAMETERS

PCB size: 50.8mmX25.4mm

DESCRIPTION

MCU Data Sheet：W5500 English version
