Arduino Nano + WIZ550io: A Compact Ethernet Upgrade in 5 Steps (W5500 Hardwired TCP/IP)
Wire a WIZ550io to an Arduino Nano, update the Ethernet library for W5500, then run the WebServer example to verify wired networking.
0
Components
Hardware componentsSoftware Apps and online services
Project description

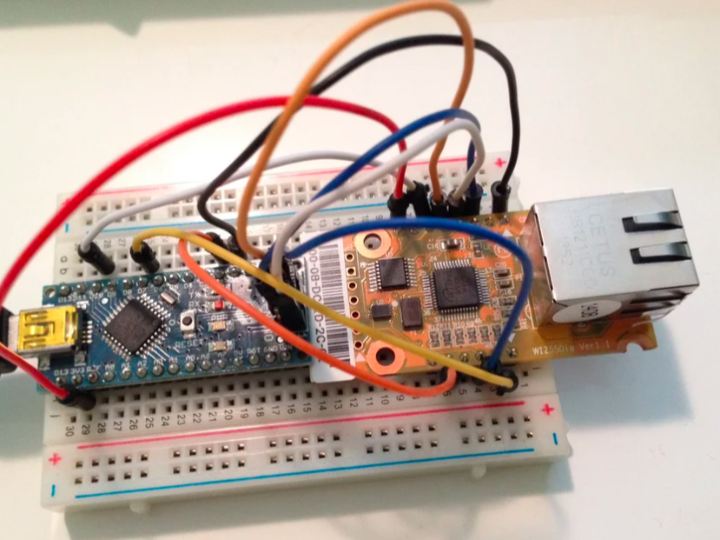

Introduction Let’s start with the motivation. The Arduino Nano is compact and convenient—until you plug in a full-size Ethernet shield and lose that neat, tiny form factor. This project shows a cleaner approach: pair the Nano with WIZnet WIZ550io, a much smaller Ethernet module, wire just a handful of pins, and you’ve got a compact wired-network Nano setup. WIZnet Product Integration Here’s what’s happening in the simplest form: Arduino Nano → SPI → WIZ550io (W5500) → Ethernet LAN WIZ550io brings a hardwired TCP/IP Ethernet controller into your Nano project without the bulk of a full shield…
