How to Add PoE-Powered Ethernet with W5500 on XIAO ESP32-S3 Plus
Add W5500 10/100 Ethernet + PoE to XIAO ESP32-S3 Plus. Hardwired TCP/IP enables stable wired IoT with low MCU load.
0
Components
Hardware componentsSeeed Studio - XIAO ESP32-S3 Plus
x 1
Project description

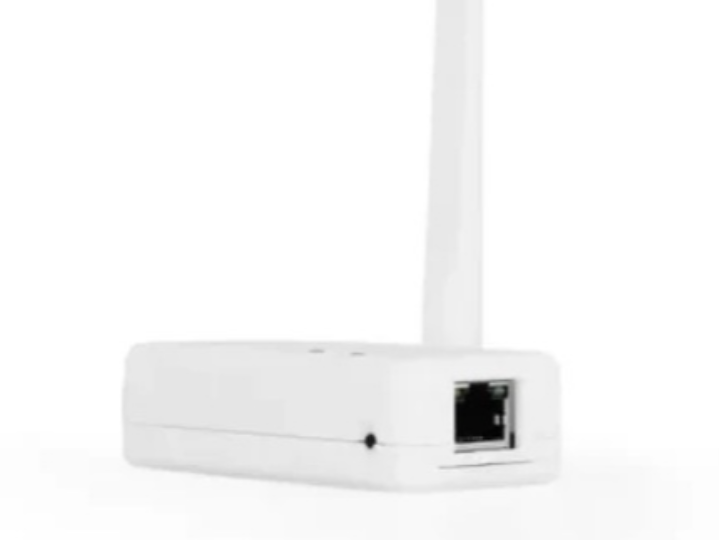

Step 1: Understanding the Hardware This “XIAO W5500 Ethernet Adapter” is effectively a compact PoE-ready dev board that combines XIAO ESP32-S3 Plus with the WIZnet W5500 Ethernet controller and a standard RJ45 10/100Mbps port. It integrates IEEE 802.3af PoE (listed with an isolated PoE module and power conversion) so you can run the board using a single Ethernet cable for both data and power. Key W5500 implementation hooks relevant to firmware and performance: Hardwired TCP/IP stack, 8 hardware sockets, 32KB internal buffer, SPI up to 80MHz (W5500 feature set) Ethernet/protocol set shown on…
