How to implement ultra-compact Ethernet with WIZnet W5500 on Propeller
Deploy a standalone web/FTP server using IoT5500. This W5500-based module for Propeller offloads TCP/IP for high-speed, 80MHz SPI IoT networking.
0
Components
Hardware components
WIZnet - W5500
x 1
Parallax - Propeller P1
x 1
Project description

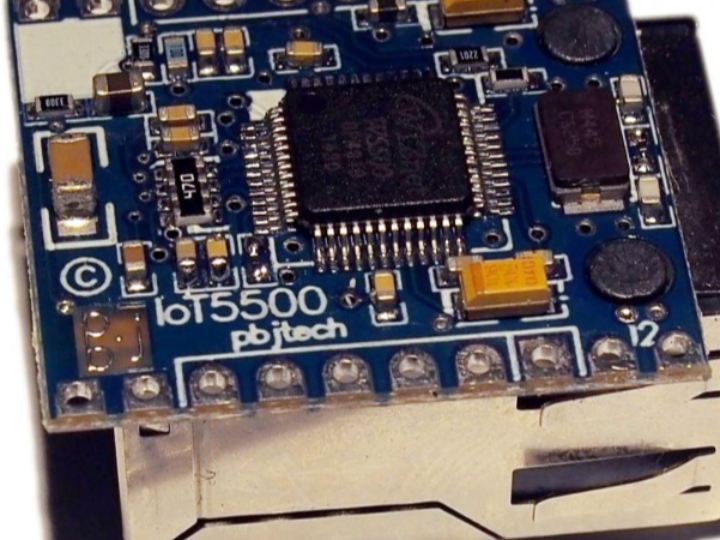

Step 1: Understanding the Hardware The IoT5500 is an ultra-compact networking module designed as a high-performance, footprint-compatible replacement for the WIZ820io. It utilizes the WIZnet W5500 Hardwired TCP/IP controller, which supports up to 8 independent sockets and features a 32KB internal buffer. The design allows for a "PCB sandwich" stack where an optional Propeller P1 (+P8) or Cortex M4 CPU is mounted directly over the Ethernet section, significantly reducing the physical footprint to roughly the size of an RJ45 MagJack. Technical Specifications: Interface: High-speed SPI (up to…
