ES-1.04 ATMega DIN Board Ethernet W5500
automation
2
Project description

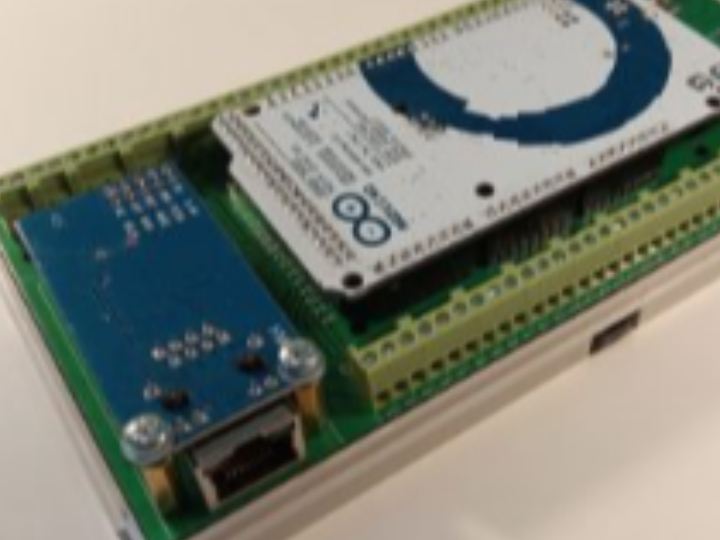

The kit is available in several different versions for self-assembly or as a pre-assembled device. The kit is designed for DIN rail mounting and is compatible with Arduino Mega with screw connections. The VIN power supply range is 8-12V and it is protected by a diode. There are stabilizing capacitors of 470u and 100n, as well as a LED indicating the presence of voltage. Dimensions: 82.9 x 171 mm Dimensions of the enclosure: 89.8 x 177.8 x 65.3 mm The Ethernet version does not have connections for the esp8266 module.
