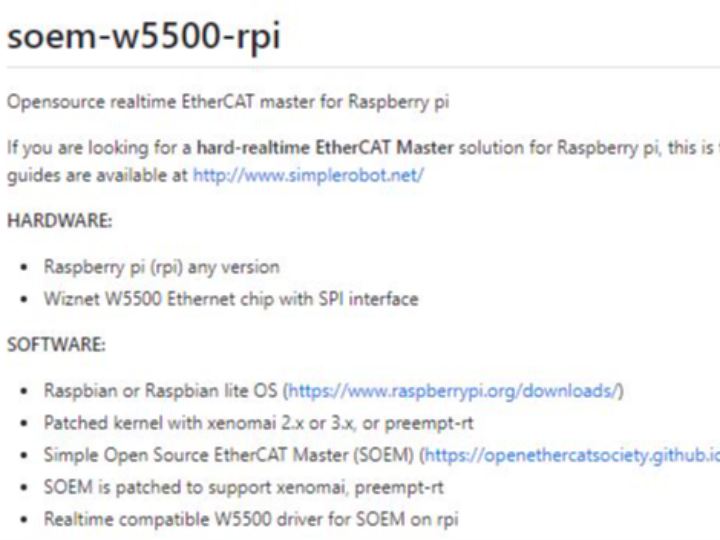

soem-w5500-rpi
Opensource realtime EtherCAT master for Raspberry pi
0
Project description
SOFTWARE:
- Raspbian or Raspbian lite OS (https://www.raspberrypi.org/downloads/)
- Patched kernel with xenomai 2.x or 3.x, or preempt-rt
- Simple Open Source EtherCAT Master (SOEM) (https://openethercatsociety.github.io/)
- SOEM is patched to support xenomai, preempt-rt
- Realtime compatible W5500 driver for SOEM on rpi
BUILD:
DO NOT use master branch, select a working branch according to your raspberry pi and kernel version (or xenomai version).i.e.:
Raspberry pi 0,1 + Xenomai 2: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi01-xenomai-2
Raspberry pi 0,1 + Xenomai 3: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi01-xenomai-3
Raspberry pi 2,3 + Xenomai 2: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi23-xenomai-2
Raspberry pi 2,3 + Xenomai 3: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi23-xenomai-3
Raspberry pi 2,3 + Preempt-rt: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi23-rt
Raspberry pi 4 + Preempt-rt: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi4-rt
Raspberry pi 4 + Xenomai 3: https://github.com/thanhtam-h/soem-w5500-rpi/tree/rpi4-xenomai-3
