Arduino W5500 Ethernet Controller Power Saving Example

irina

Published November 01, 2023

Original author: pauldengOriginal source (new tab)

arduino-leonardo-eth-w5500-powerdown-example

Components

Hardware components

Project description

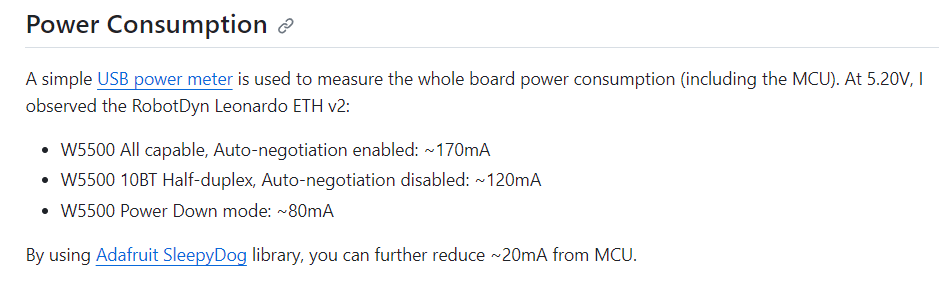

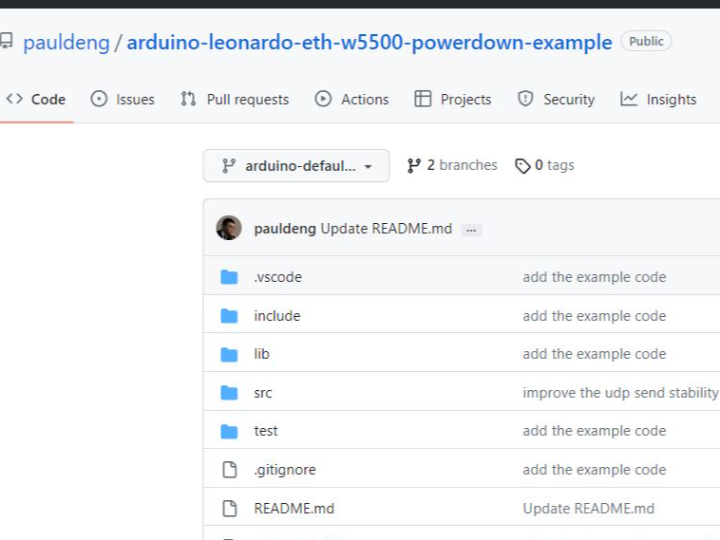

This GitHub link is for a project titled "arduino-leonardo-eth-w5500-powerdown-example". This project provides example code for reducing power consumption using an Arduino Leonardo board and a Wiznet W5500 Ethernet shield. The code demonstrates how to put the Ethernet shield into sleep mode and reactivate it. By doing so, it minimizes power consumption and extends battery life. For more detailed information, please refer to the project's README file. The project also provides measurements for the operation of the W5500, not just in Powerdown mode.
