XBoard V2 -A Bridge Between Home And Internet (Arduino Compatible)

XBoard V2 -A Bridge Between Home And Internet (Arduino Compatible)

gavinchang

Published April 25, 2023

Original author: XBoard V2Original source (new tab)

XBoard V2 -A Bridge Between Home And Internet (Arduino Compatible)

Components

Hardware components

Project description

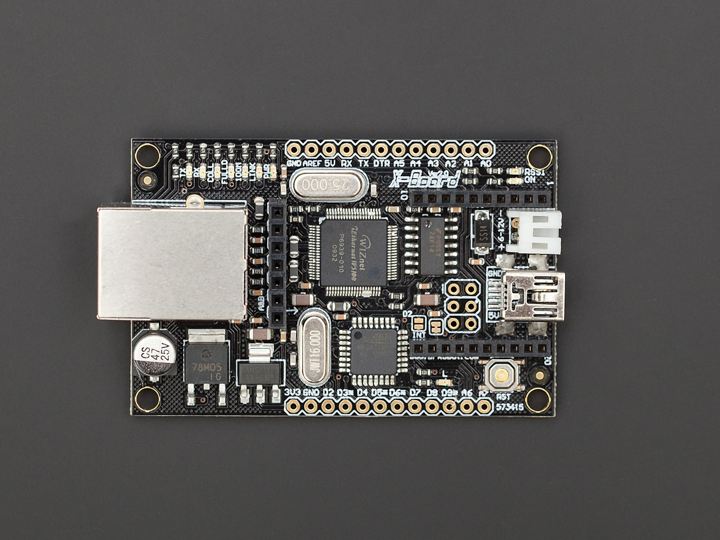

This is Version 2.0 of the Xboard. The main improvement is that it now operates at 5V, making it compatible with most sensors and I2C protocol without the need of a voltage level converter. The XBoard is a unique Arduino compatible board which features a WIZnet ethernet port, an XBee socket, and an ATMega328. This board will add wireless XBee control as well as internet connectivity to your projects. It's great for anything from home automation to robot control. The possibilities are endless! It has 8 Analog I/O pins and 8 digital pins, 4 of which have PWM (indicated by an asterisk). It is…
