How Does a WIZnet-Based Arduino Ethernet Shield Fit into a Smart PLC Patent?

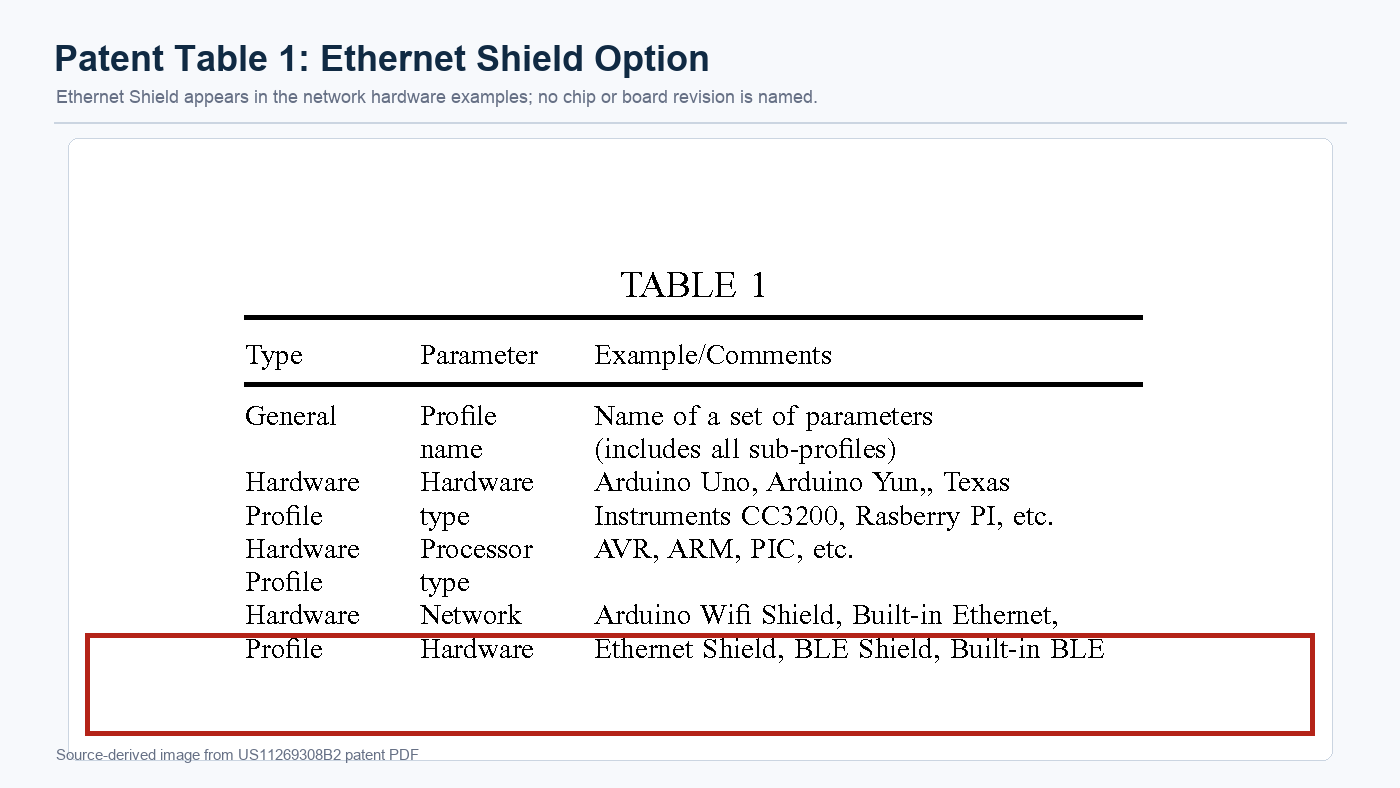

US11269308B2 lists a generic Ethernet Shield in a smart PLC architecture. Arduino W5100/W5500 shields show one possible WIZnet path.
0
Components
Hardware components
WIZnet - W5500
x 1

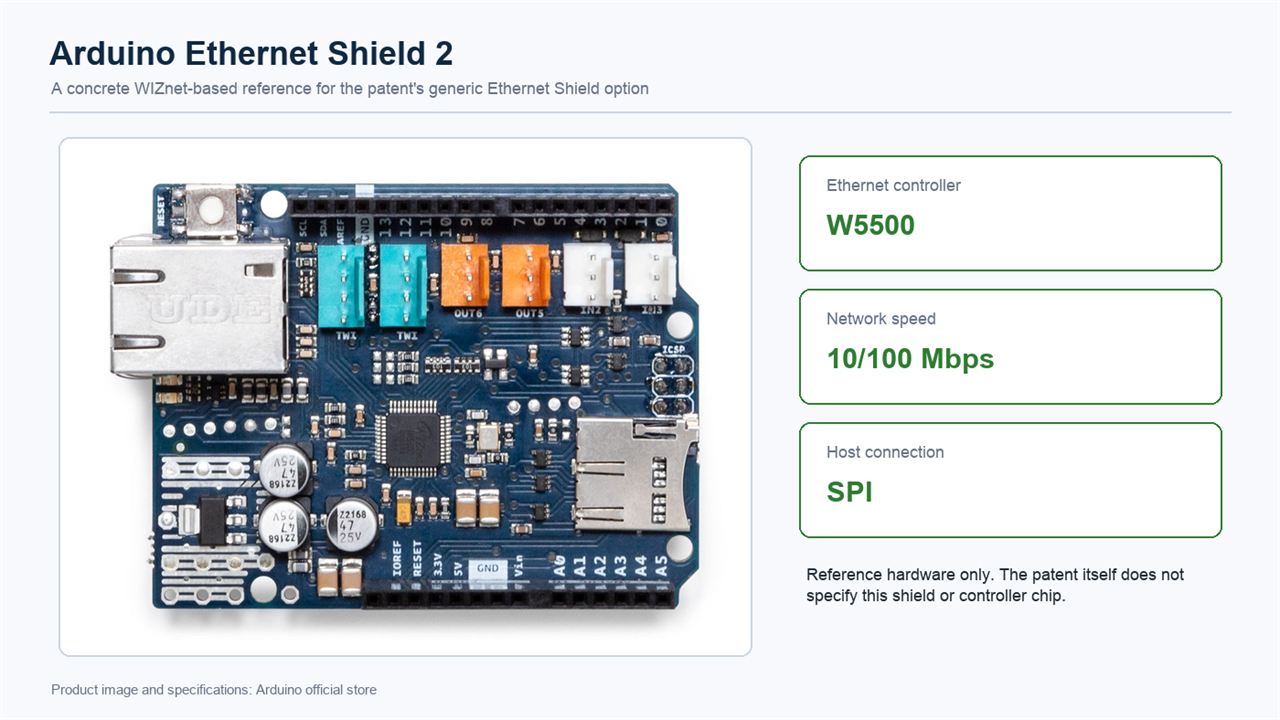

Arduino Ethernet Shield 2 uses W5500 over SPI. It illustrates one possible implementation of the patent's generic Ethernet Shield option.
WIZnet - W5100
x 1
Classic and Rev3 Arduino Ethernet Shields use W5100. They illustrate one possible implementation of the patent's generic Ethernet Shield option.
Project description

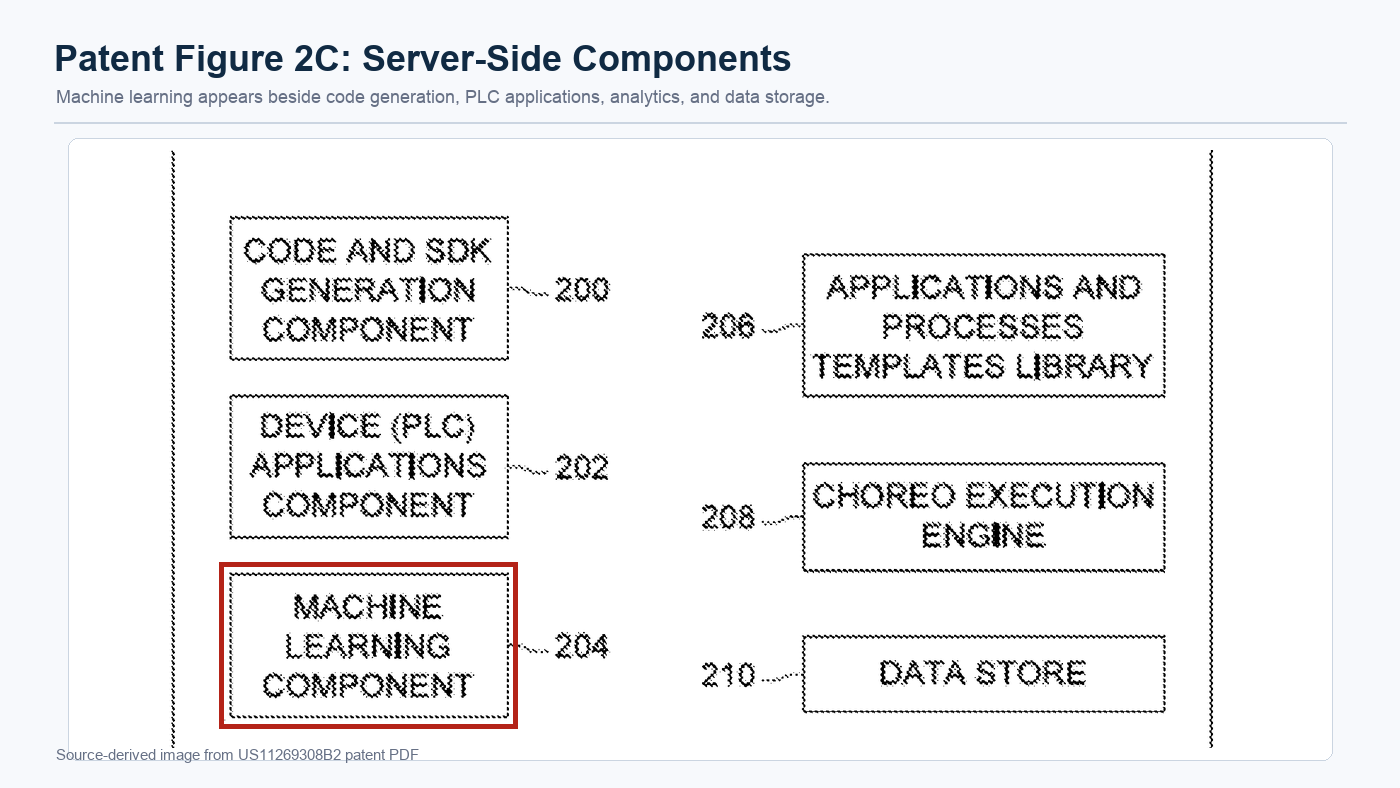

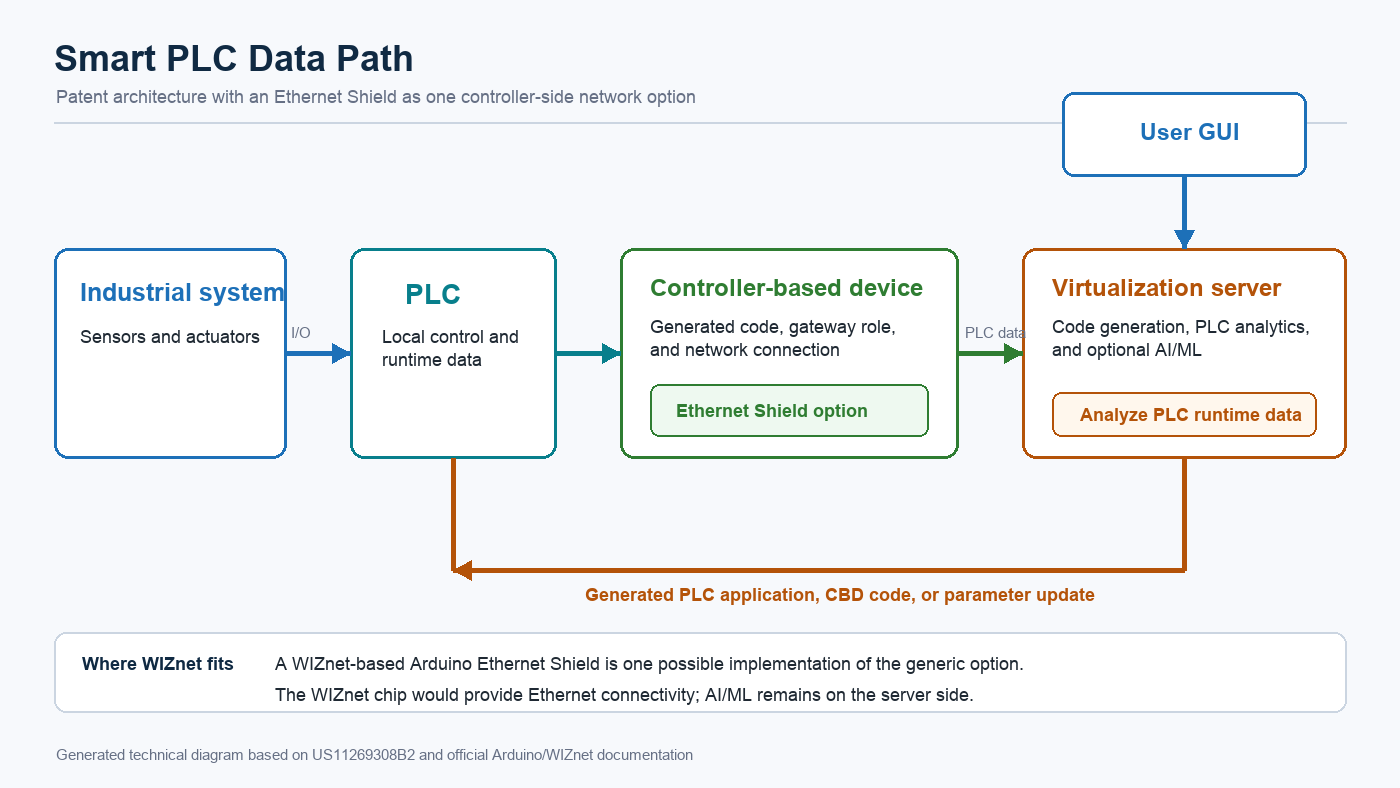

Overview US11269308B2 is a United States patent for creating and managing a network-connected smart PLC system. It lists Trisala Chandaria as the inventor and Ciambella Ltd. as the assignee, and it was granted on March 8, 2022. The patent connects an existing programmable logic controller (PLC) to a companion controller, a user interface, and a virtualization server. In plain terms, the PLC continues to control the sensors and actuators in the industrial system. The companion controller, called a CBD in the patent, connects the PLC to network services. The server generates applications…
